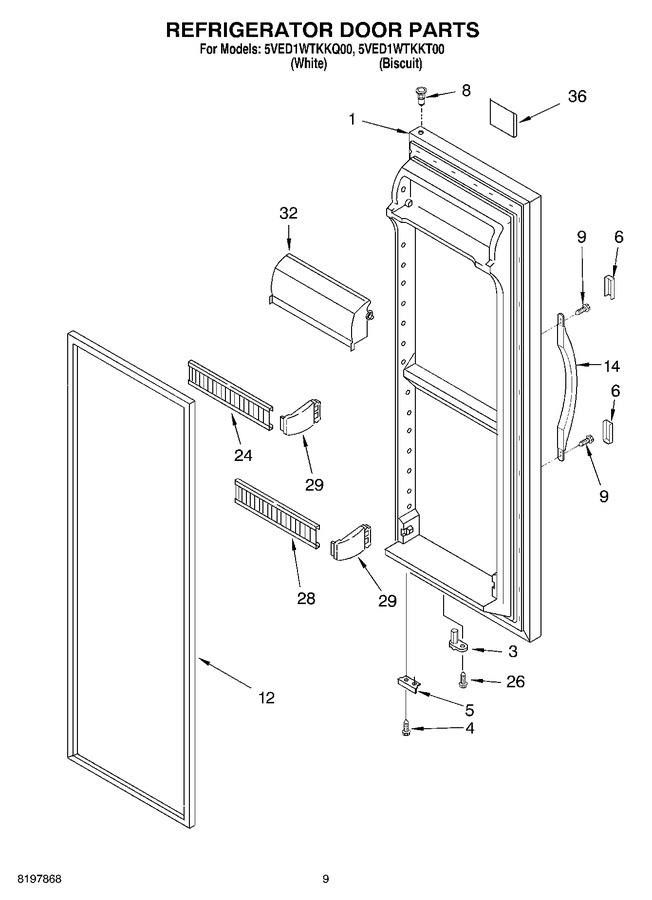

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206828T		Refrigerator Door (biscuit)		Appelez-nous	-
1	2206828W		Refrigerator Door (white)		Appelez-nous	-
3	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
4	WP489483		Screw   (Replaces: 489420)				$ 11.41
5	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
6	2193353T		Endcap, Handle (2) (biscuit)		Appelez-nous	-
6	WP2193353W		Endcap, Handle (2) (white)   (Replaces: 2193353W)				$ 8.52
8	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 8.15
9	WP489491		Screw   (Replaces: 489491)				$ 7.30
12	2159073		Door Gasket, Magnetic   (Replaces: 2196239)				$ 333.19
14	2186649W		Handle, Center (white)				$ 70.49
14	2186649T		Handle, Center (biscuit)		Appelez-nous	-
24	2195934		Trim, Door Shelf				$ 46.59
25	WP2195915		Endcap, Door Trim   (Replaces: 2195915)				$ 13.72
26	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
28	2182190		Trim, Door Shelf (2)		Appelez-nous	-
29	WP2195916K		Endcap, Door Trim   (Replaces: 2195916)			Immediately	$ 13.18
32	WP2256101		Compartment Door   (Replaces: 2177105)			Immediately	$ 89.42
36	2205769		Nameplate (biscuit)		Appelez-nous	-
36	2175383		Nameplate (white)		Appelez-nous	-
