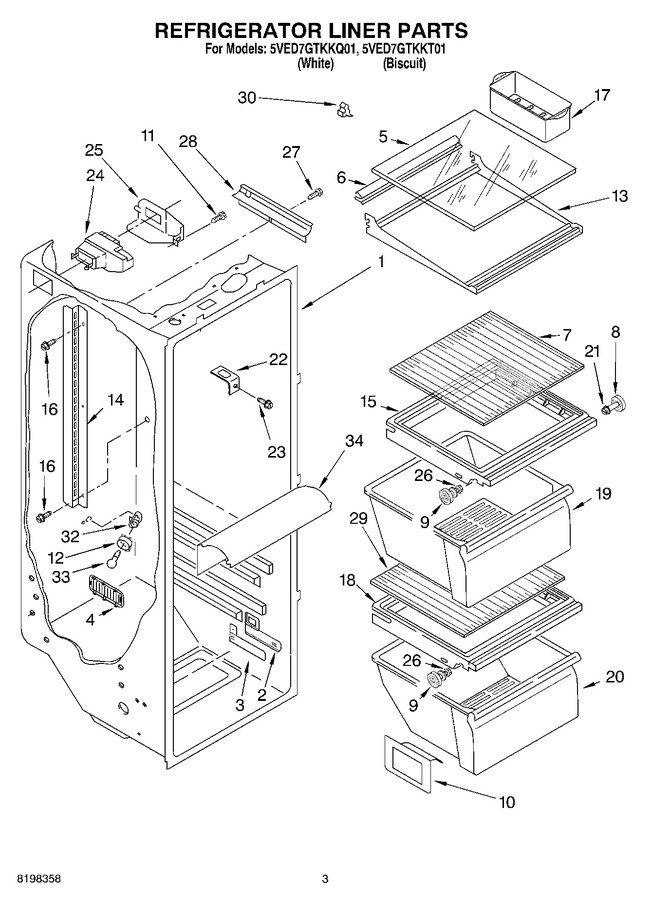

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control				$ 95.84
3	2182757		Slide Meat Pan Control				$ 75.15
4	2182147		Louver		Appelez-nous	-
5	2177986		Glass (3)				$ 90.50
6	1125594		Retainer, Glass		Appelez-nous	-
7	W10864399		Glass, Crisper Cover   (Replaces: 2174150)				$ 232.03
8	WP2196483		Stud Assembly (if Applicable)   (Replaces: 2196483)				$ 10.87
9	W11223328		Stud Assembly (use On Crisper Cover, As Shown, If Applicable)   (Replaces: 2196485)			Immediately	$ 14.77
10	2179350		Deflector, Air				$ 85.89
11	W10759522		Screw (2)   (Replaces: 486298)				$ 8.24
12	WP2175210		Shroud, Light   (Replaces: 2169193)				$ 86.74
13	2163572		Shelf Assembly, Cantilever (3)		Appelez-nous	-
14	2206273		Ladder, Shelf (2)		Appelez-nous	-
15	W10508993		Crisper Cover   (Replaces: 2209698)				$ 305.85
16	WP488729		Screw   (Replaces: 487539)			Immediately	$ 8.28
17	W10136387A		Egg Bin   (Replaces: 2216624)				$ 19.54
18	2217039		Meat Pan Cover		Appelez-nous	-
19	WP2188661		Crisper Pan   (Replaces: 2196481)			Immediately	$ 196.47
20	WP2188664		Meat Pan   (Replaces: 2196162)			Immediately	$ 92.70
21	WP3400806		Screw (if Applicable)   (Replaces: 8281158)				$ 8.10
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 36.10
23	WP488488		Screw   (Replaces: 489290)				$ 8.52
24	WPW10151374		Air Diffuser Assembly   (Replaces: 2209753)			Immediately	$ 104.77
25	2152019		Air Diffuser Cover				$ 90.33
26	WP3-24004-109		Screw (use On Crisper Cover, As Shown, If Applicable)   (Replaces: 3400894)				$ 9.14
27	W10759522		Screw   (Replaces: 486298)				$ 8.24
28	2150331		Cover, Wiring				$ 25.62
29	W10864399		Glass, Meat Cover   (Replaces: 2179259)				$ 232.03
30	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.94
32	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
33	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
34	2209769		Light Lens		Appelez-nous	-
