SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Optional

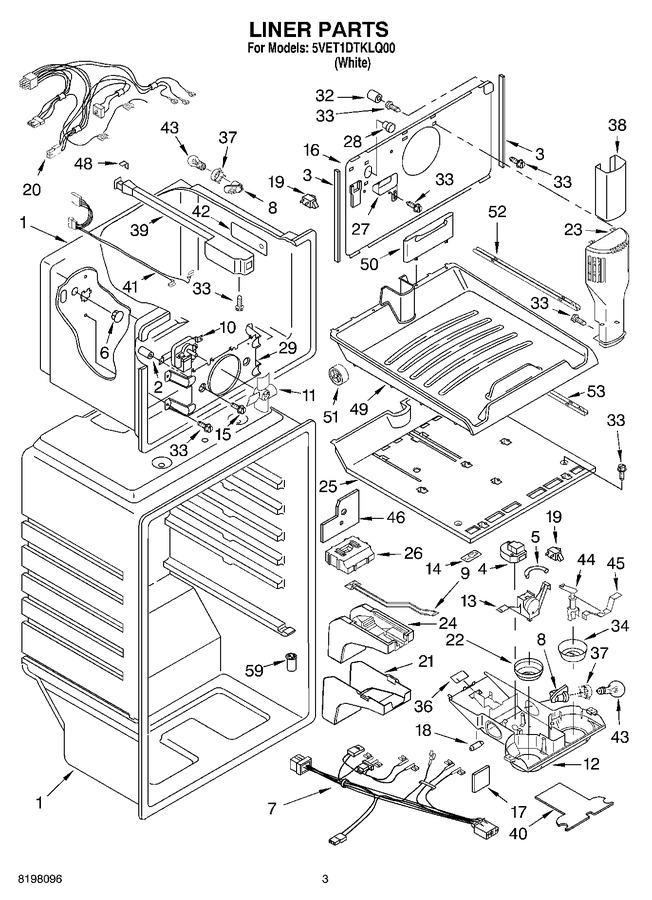

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	531933		Grommet (2)				$ 5.70
3	WP2254360		Gasket, Evaporator Cover (2)   (Replaces: 2189270)				$ 28.12
4	WP2321259		Timer, Defrost   (Replaces: 2187236)				$ 163.76
5	2212485		Thermostat Tube Barrier				$ 5.92
6	940014		Hole Plug				$ 18.33
7	2187306		Wire Assembly, Control Box		Appelez-nous	-
8	4387478		Socket, Light (2)   (Replaces: 2162085)			Immediately	$ 115.67
9	2179858		Damper, Air		Appelez-nous	-
10	2201150		Fan Motor				$ 98.34
11	WP2163777		Fan Blade   (Replaces: 2200509)			Immediately	$ 107.61
12	2200820		Control Box		Appelez-nous	-
13	2210378		Thermostat Assembly (includes Items 5, 18, & 36)		Appelez-nous	-
14	2176341		Clip, Defrost Timer		Appelez-nous	-
15	489412		Screw		Appelez-nous	-
16	2201173		Cover-evaporator		Appelez-nous	-
17	2179838		Tape-alum		Appelez-nous	-
18	2200831		Weight, Thermal		Appelez-nous	-
19	W11384469		Rocker Arm (2) Switch   (Replaces: 1118894)			Immediately	$ 39.09
20	2187303		Wire Assembly, Freezer Compartment		Appelez-nous	-
21	2176281		Cover, Air Diffuser				$ 41.64
22	W10829461		Knob, Thermostat   (Replaces: 2200863)				$ 31.91
23	2182340		Air Tower				$ 43.02
24	WP2189452		Air Diffuser, Bottom   (Replaces: 2189452)			Immediately	$ 131.03
25	2204746		Freezer Floor		Appelez-nous	-
26	2179877		Air Diffuser, Top (includes Item 37)		Appelez-nous	-
27	2205003		Cover, Hole		Appelez-nous	-
28	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
29	2200511		Bracket, Fan Motor		Appelez-nous	-
32	WP487996		Cap   (Replaces: 487996)				$ 8.67
33	WP489478		Screw   (Replaces: 489478)				$ 8.18
34	2176297		Knob, Damper		Appelez-nous	-
36	WP2205079		Seal, Rearthermostat   (Replaces: 2205079)				$ 10.01
37	WP2175210		Shroud   (Replaces: 2175210)				$ 86.74
38	2179712		Sleeve		Appelez-nous	-
39	2182382		Housing Base		Appelez-nous	-
40	2201082		Shield		Appelez-nous	-
41	2187281		Wiring Harness, Freezer Light		Appelez-nous	-
42	2193491		Electrical Shield, Freezer Light				$ 5.81
43	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
44	2179859		Post, Damper		Appelez-nous	-
45	2163810		Bracket, Damper Knob				$ 6.01
46	2204639		Shield, Heat		Appelez-nous	-
48	2166284		Gasket, Rear				$ 6.06
49	2189429		Pullout, Freezer Floor (includes Item 56)		Appelez-nous	-
50	2198768		Rear Fence Pull-out Freezer Floor				$ 35.55
51	2176246		Roller, Slide		Appelez-nous	-
52	2179713		Side Support, Floor Assembly		Appelez-nous	-
53	2179714		Center Support, Floor Assembly		Appelez-nous	-
59	WP2210509		Valve, Release   (Replaces: 2210509)				$ 99.15
