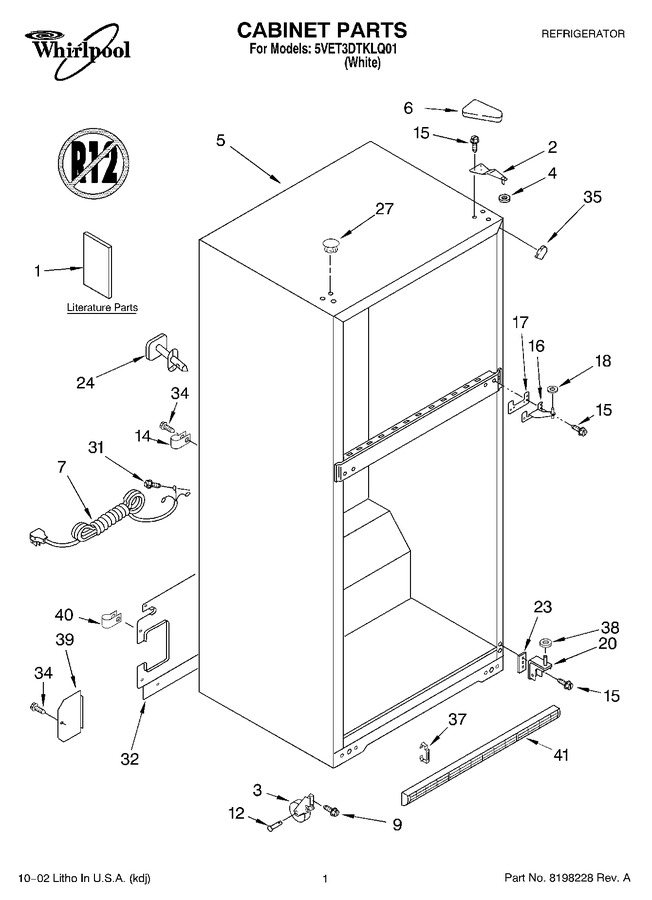

SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2225305		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
1	LIT677969		Literature Parts (do-it-yourself Manual, Ref/fzr)		Appelez-nous	-
1	LIT2218585		Literature Parts (use & Care Guide)		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2189410)			Immediately	$ 107.48
3	WP2166108		Roller-front   (Replaces: 2166108)			Immediately	$ 31.28
4	WP487576		Washer-nylon   (Replaces: 487576)			Immediately	$ 9.67
5	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
6	WP2213360		Cover Hinge   (Replaces: 2213360)				$ 18.17
7	2205329		Cord-service		Appelez-nous	-
9	WP3400504		Screw   (Replaces: 3400504)				$ 6.80
12	W11594405		Rivet   (Replaces: 981126)			Immediately	$ 17.21
14	489348		Clamp, Tube		Appelez-nous	-
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
16	WP2254618		Hinge, Center   (Replaces: 2183972)			Immediately	$ 82.82
17	WP2183854		Shim, Hinge Center   (Replaces: 2183854)				$ 10.29
18	WP489467		Washer   (Replaces: 489341)			Immediately	$ 10.28
20	WP2254473		Hinge Butt   (Replaces: 2189194)				$ 8.35
23	2172743		Shim, Bottom Hinge				$ 33.55
24	N/A		Fitting, Water Tube (not Serviced)		Appelez-nous	-
27	WP2151652		Hole Plug (6)   (Replaces: 2201012)				$ 20.58
31	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
32	2210542		Cover, Unit		Appelez-nous	-
34	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
35	WPW10283959		Corner Filler   (Replaces: 2201014)				$ 7.39
37	2189356		Clip-grille				$ 5.70
38	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.67
39	2166251		Cover, Water Valve				$ 6.43
40	WP488366		Clamp   (Replaces: 489385)				$ 10.73
41	2201006		Grille		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
