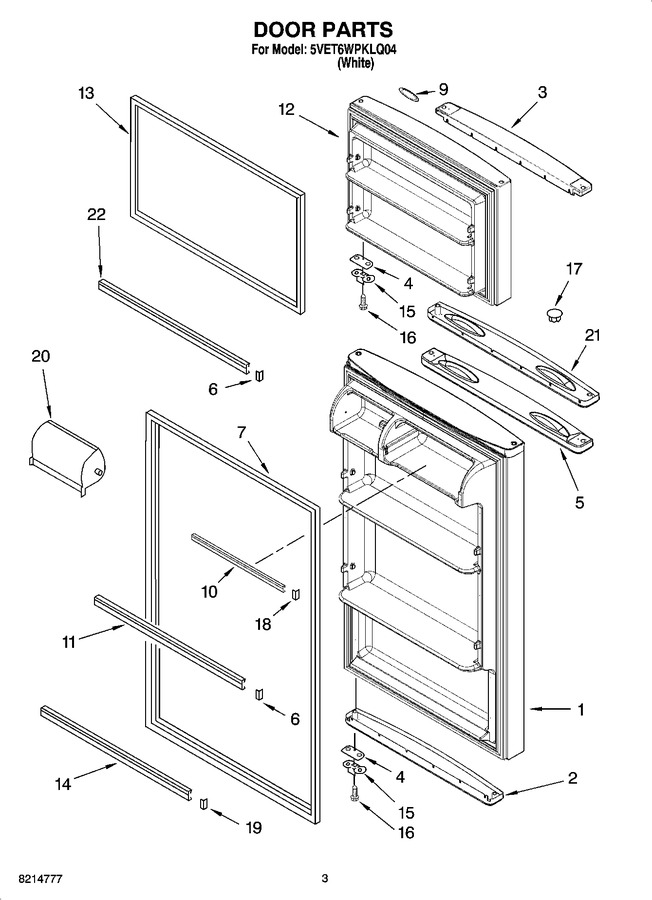

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2316459W | Refrigerator Door (includes Items 2, 5 & 7) |
|
- | |||||
| 2 | 2265647W | Endcap, Bottom |
|
$ 63.82 | |||||
| 3 | 2265644W | Endcap, Top |
|
$ 148.05 | |||||
| 4 | WP2258681W | Shim, Door Stop (Replaces: 2258681W) |
|
Immediately | $ 7.55 | ||||
| 5 | 2265645W | Handle (rc Door) |
|
$ 219.98 | |||||
| 6 | WP2156003 | Plug-trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 7 | WP2319265T | Door Gasket, Magnetic (Replaces: 2264506) |
|
Immediately | $ 233.76 | ||||
| 9 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 93.18 | ||||
| 10 | W11129820 | Trim, Door Shelf (upper) (Replaces: 2264810) |
|
Immediately | $ 127.34 | ||||
| 11 | WP2266727 | Trim, Door (middle) (Replaces: 2316465) |
|
Immediately | $ 120.57 | ||||
| 12 | 2316373W | Freezer Door (includes Items 3, 13 & 21) |
|
- | |||||
| 13 | WP2319263T | Door Gasket, Magnetic (Replaces: 2263257) |
|
Immediately | $ 215.86 | ||||
| 14 | WP2266738 | Trim, Door Shelf (lower) (Replaces: 2264808) |
|
$ 111.69 | |||||
| 15 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 16 | W10276642 | Screw (Replaces: 8533904) |
|
$ 6.41 | |||||
| 17 | WP2212648 | Hole Plug (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 18 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 19 | WP2195916K | Plug, Trim (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 20 | WP2207942 | Compartment Door (Replaces: 2263767) |
|
Immediately | $ 73.21 | ||||
| 21 | 2265645W | Handle (fc Door) (Replaces: 2265646W) |
|
$ 219.98 | |||||
| 22 | WP2266727 | Trim, Door (2) (Replaces: 2264809) |
|
Immediately | $ 120.57 |
