Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP2196195 Pin   (Replaces: 2196195) Special Order $ 15.31

2 WPW10224328 Spring, Torsion   (Replaces: 2180209) Special Order $ 87.40

3 WP2194719 Retainer, Levers   (Replaces: 2194719) In-Stock Immediately $ 12.36

5 WP3196175 Screw   (Replaces: 3196165) In-Stock Immediately $ 7.55

6 625834 Spacer, Switch (2) Special Order $ 7.99

7 WP2195051 Strain Relief   (Replaces: 2195051) Special Order $ 12.54

9 WP2180353 Door, Ice   (Replaces: 2203886) In-Stock Immediately $ 26.83

10 2206423 Door Mechanism Assembly Appelez-nous -
11 WP3400065 Screw   (Replaces: 3400065) In-Stock Immediately $ 8.18

12 2205686 Mechanism Delay Appelez-nous -
13 2207007T Grille, Overflow (biscuit) Appelez-nous -
13 2207007W Grille, Overflow (white) Special Order $ 29.56

14 2311650 Wire Assembly   (Replaces: 2187409) Special Order $ 94.16

22 8201537 Water Fitting Assembly (includes Water Tube)   (Replaces: 2209718) Special Order $ 140.84

24 WP2203562W Lever Assembly, Ice Dispenser (white)   (Replaces: 2203562W) Special Order $ 113.04

24 2203562T Lever Assembly, Ice Dispenser (biscuit) Special Order $ 56.21

25 WP2180224 Guide, Ice   (Replaces: 2180224) In-Stock Immediately $ 30.02

29 2180200 Lamp Holder Special Order $ 103.59

30 WP2162361 Switch (2)   (Replaces: 2162361) In-Stock Immediately $ 28.71

33 WP2180226 Bracket, Control   (Replaces: 2183771) In-Stock Immediately $ 26.97

34 989331 Bulb, Light Appelez-nous -
38 2203561T Lever Assembly, Water Dispenser (biscuit) Special Order $ 103.61

38 2203561W Lever Assembly, Water Dispenser (white) Special Order $ 100.78

40 2207084W Front Cover, Housing (includes Item) 8, 14 & 39) (white) Appelez-nous -
40 2207084T Front Cover, Housing (includes Item) 8, 14 & 39) (biscuit) Appelez-nous -
45 WP3400906 Screw   (Replaces: 489000) Special Order $ 9.05


    View Diagram in Separate Window     Print Icon   Print Part List

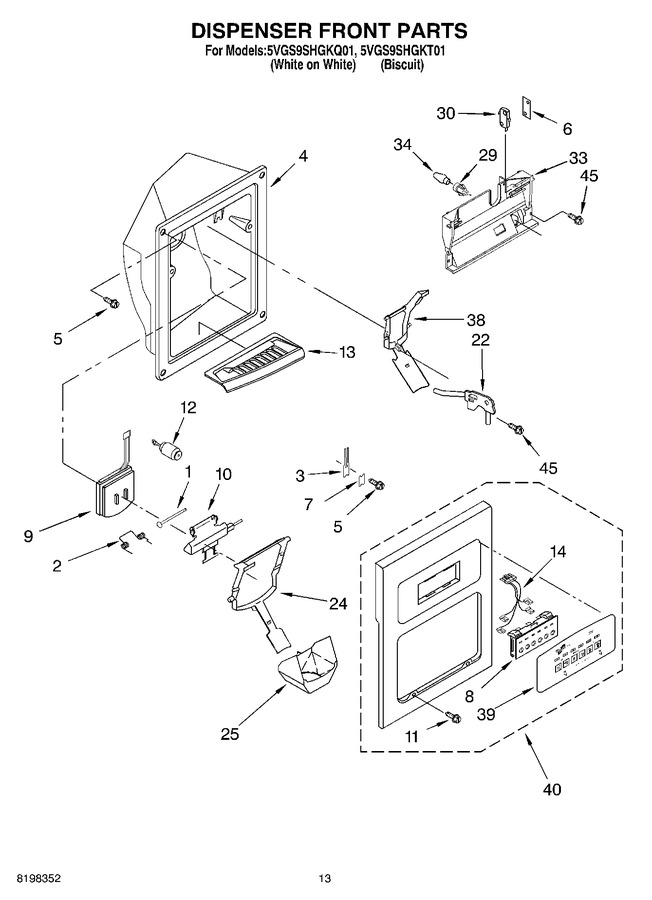

Diagram for 5VGS9SHGKT01
