SELECT A DIAGRAM

01 - Top And Cabinet Parts

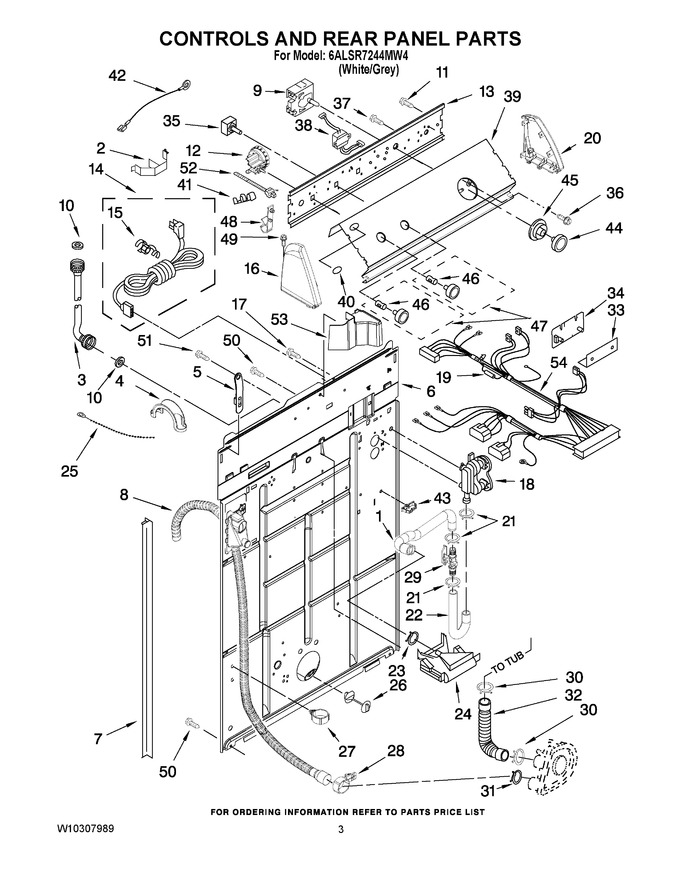

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3349365		Hose, Sensor (upper)   (Replaces: 3349365)				$ 20.17
2	8055003		Clip, Harness & Pressure Hose				$ 36.24
3	WPW10489643		Hose, Water Inlet (2)   (Replaces: 3366916)				$ 73.67
4	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.53
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.35
6	8318015		Panel, Rear				$ 148.59
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 24.81
8	WPW10096921		Drain Hose Assembly (includes Items 27 & 28)   (Replaces: W10096921)			Immediately	$ 65.84
9	3954170		Timer, Control (50 Hz.) (motor Not A Service Part)		Appelez-nous	-
10	WP16123		Washer, Water Inlet Hose (4)   (Replaces: W10242307)				$ 7.34
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.43
12	WPW10231403		Switch, Water Level   (Replaces: W10231392)				$ 155.35
13	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 109.80
14	W10121455		Cord, Power		Appelez-nous	-
15	8559337		Strain Relief, Power Cord		Appelez-nous	-
16	8271369		Cap, End (l.h.)		Appelez-nous	-
17	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.57
18	WP3360397		Valve, Water Mixing   (Replaces: 3360397)				$ 272.20
19	WPW10111181		Fuse (in Harness)   (Replaces: W10111181)				$ 31.33
20	8271363		Cap, End (r.h.)		Appelez-nous	-
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.94
22	WP3357319		Hose, Vacuum Break   (Replaces: 3357319)				$ 25.71
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.94
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 45.41
25	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.47
26	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 17.87
27	8541667		Clamp, Hose				$ 5.86
28	8541668		Clamp, Hose				$ 20.09
29	3352282		Sensor, Inline				$ 66.68
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.72
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 7.93
32	285871		Hose, Pump To Tub (includes Item 30)   (Replaces: 3951449)			Immediately	$ 26.09
33	8316039		Shield, Atc		Appelez-nous	-
34	WPW10110247		Control, Atc   (Replaces: W10110247)				$ 122.32
35	W10168172		Switch, Water Temperature		Appelez-nous	-
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.93
37	3400073		Screw, Ground		Appelez-nous	-
38	3407160		Transformer		Appelez-nous	-
39	W10115465		Panel, Console (includes Item 40)		Appelez-nous	-
40	3955775		Medallion		Appelez-nous	-
41	W10113937		Clip, Grounding				$ 10.23
42	W10110977		Wire, Ground		Appelez-nous	-
43	3352944		Clip, Harness		Appelez-nous	-
44	WP8538949		Knob, Timer   (Replaces: 8538949)				$ 55.77
45	WP8538955		Dial, Timer   (Replaces: 8538955)				$ 50.11
46	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.38
47	WP8538957		Knob, Control   (Replaces: 8538957)				$ 52.68
48	8317975		Restraint, Harness				$ 5.86
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 8.36
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.43
51	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.72
52	W10231379		Cable Tie		Appelez-nous	-
53	8314879		Shield, Inlet Valve		Appelez-nous	-
54	W10292426		Harness, Wiring (for Detail See Pages 9 & 10)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
