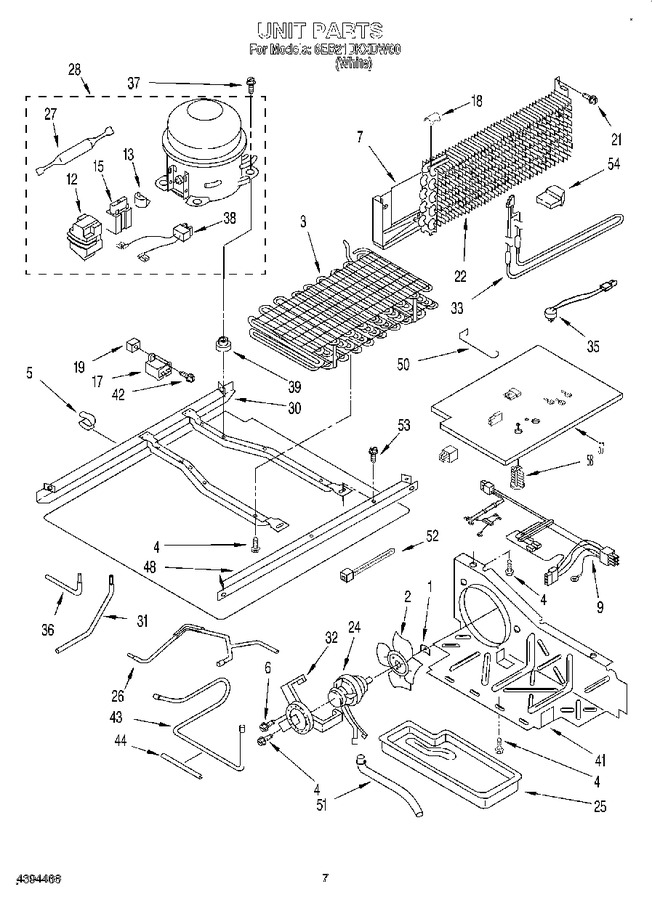

04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	2190685		Blade, Fan				$ 52.00
3	2164513		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
5	2155658		Clip, Wire		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489099)				$ 13.71
7	2152771		Drain Pan & Heat Shield Assy.		Appelez-nous	-
9	2165708		Wire Assembly		Appelez-nous	-
12	WP2162358		Cover   (Replaces: 2162358)				$ 95.29
13	WP2169412		Overload (includes Relay)   (Replaces: 2169412)				$ 151.70
15	N/A		Relay (see Overload)		Appelez-nous	-
17	WP2201147		Running Capacitor   (Replaces: 2154718)				$ 135.42
18	9791833		Clip		Appelez-nous	-
19	509812		Screw Grommet		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489242)				$ 8.18
22	2152776		Evaporator		Appelez-nous	-
24	8201703		Motor, Fan   (Replaces: 2162066)				$ 371.70
25	2154114		Tray, Evaporator		Appelez-nous	-
26	2162475		Tube, Discharge		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2174865)			Immediately	$ 57.13
28	876765		Tube Kit			Immediately	$ 90.65
28	W10183407		Compressor (includes Items 11, 12, 13, 15, 17, 27, 38) (also Order)   (Replaces: 2169449)				$ 435.61
30	2304903		Unit Mounting Frame   (Replaces: 2160500)				$ 244.68
31	2154032		Tube, Condenser To Heat Loop		Appelez-nous	-
32	548695		Fan, Motor Bracket		Appelez-nous	-
33	2165681		Heater, Defrost		Appelez-nous	-
35	WP4387503		Bi-metal, Defrost   (Replaces: 2183072)			Immediately	$ 47.89
36	2154109		Tube, Process				$ 76.26
37	876811		Screw   (Replaces: 489373)				$ 7.79
38	WP2172890		Wire Assembly   (Replaces: 2172890)				$ 8.51
39	876811		Grommet   (Replaces: 1100826)				$ 7.79
41	2162457		Air Baffle		Appelez-nous	-
42	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
43	2162472		Tube, Suction		Appelez-nous	-
44	W11751592		Sleeve   (Replaces: 2162499)			Immediately	$ 21.32
48	2149717		Unit Mounting Rail		Appelez-nous	-
50	1105612		Guard, Fan				$ 42.61
51	2152822		Extension, Drain Tube		Appelez-nous	-
52	WPW10339879		Strap   (Replaces: 2155774)				$ 8.30
53	WP489427		Screw   (Replaces: 489427)				$ 7.84
54	1115128		Support		Appelez-nous	-
57	2160505		Cover-unit Btm.		Appelez-nous	-
58	876764		Valve, Access(3/16``)			Immediately	$ 95.92
58	978029		Valve Access (5/8``)				$ 93.85
58	978030		Valve, Access (3/4``)				$ 137.25
58	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
58	489396		Clip				$ 11.26
58	978026		Valve, Access (5/16``)			Immediately	$ 134.49
58	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 18.65
58	978028		Valve, Access (1/2)		Appelez-nous	-
