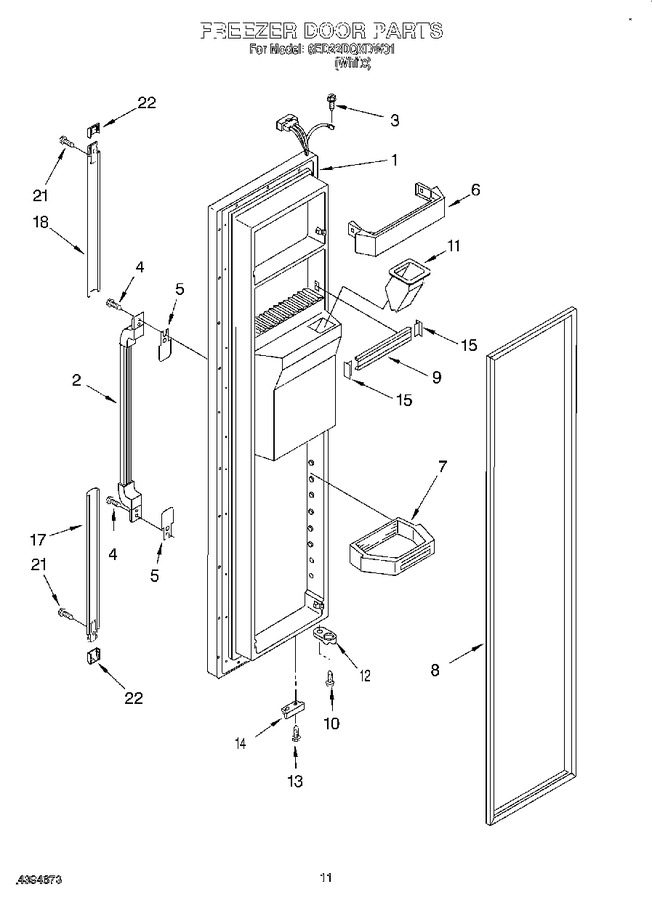

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2197783W		Freezer Door (includes Item No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2194759W		Handle, Center		Appelez-nous	-
3	WP488234		Screw   (Replaces: 489422)				$ 6.37
4	WP489463		Screw   (Replaces: 489463)				$ 7.43
5	2179399		Shim, End Cap (2)		Appelez-nous	-
6	WP2156021		Trivet, Shelf (2)   (Replaces: 2156021)				$ 59.79
7	2179578		Shelf Bin (2)		Appelez-nous	-
8	2159072		Door Gasket, Magnetic (service)				$ 291.24
9	WPW10307490		Trim, Door Shelf   (Replaces: 2195926)			Immediately	$ 21.84
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
11	2156146		Chute, Ice		Appelez-nous	-
12	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 26.77
13	WP999367		Screw   (Replaces: 489367)				$ 7.70
14	2195950		Bracket, Door Stop				$ 5.84
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
17	2194766W		Extension, Bottom		Appelez-nous	-
18	2194764W		Extension, Top		Appelez-nous	-
21	WPW10141645		Screw   (Replaces: 489084)				$ 7.25
22	2174006		Cover, End Cap		Appelez-nous	-
