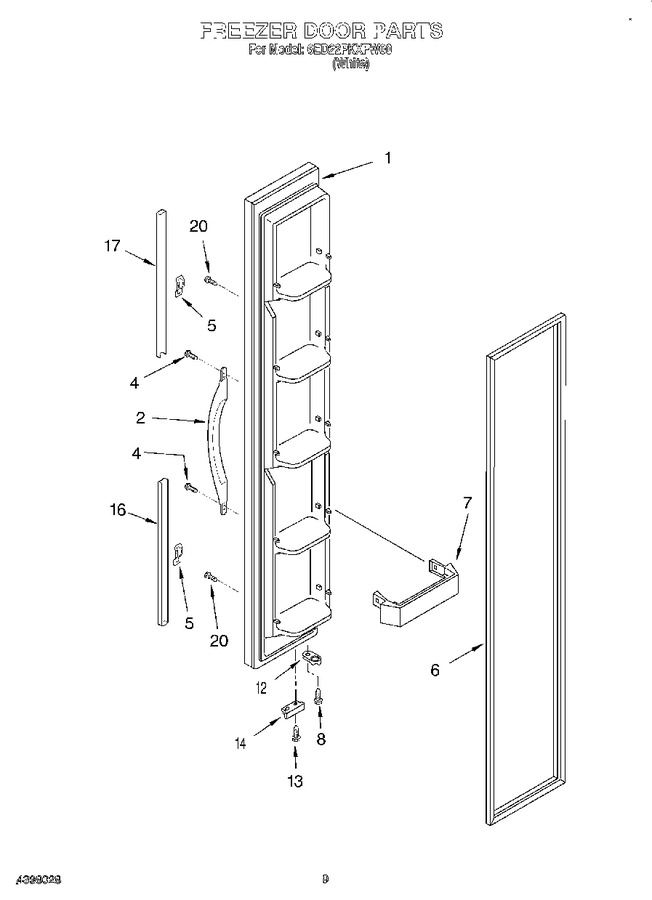

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194198W		Freezer Door (includes No.6) (white)		Appelez-nous	-
2	2186649W		Handle, Center (white)				$ 70.49
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.77
6	2159072		Door Gasket, Magnetic (service)				$ 323.60
7	2194286		Trivet, Door Shelf (5)		Appelez-nous	-
8	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
12	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2195950		Bracket, Door Stop				$ 5.84
16	2194969W		Extension, Bottom (white)				$ 5.51
17	2194971W		Extension, Top (white)				$ 44.85
20	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
