SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Refrigerator Door


06 - Freezer Door


07 - Air Flow


08 - Control


09 - Unit, Optional

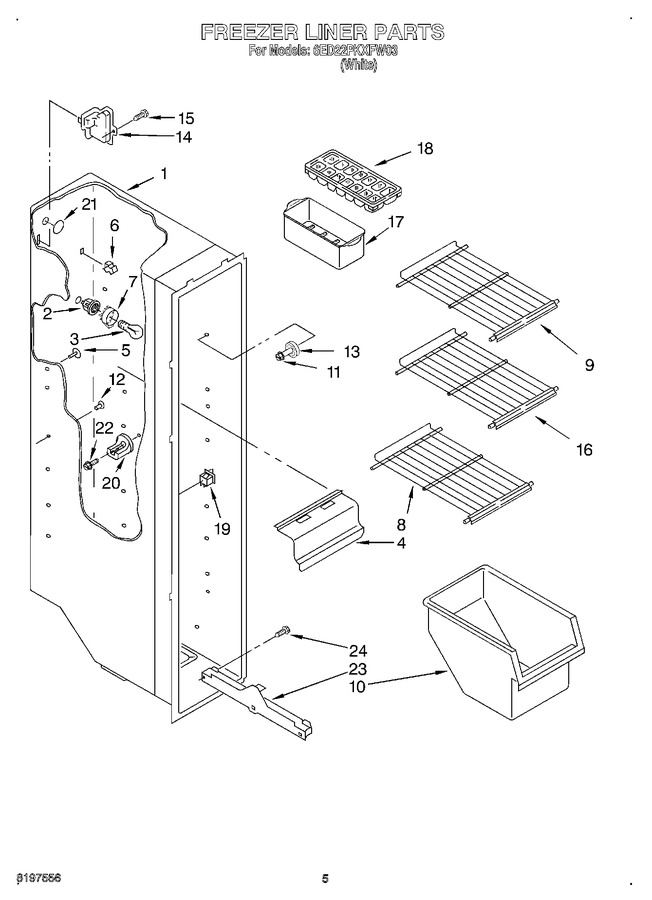

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	WPW10119935		Light Socket   (Replaces: 2155597)				$ 106.16
3	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
4	WP2155595		Light Lens   (Replaces: 2155595)				$ 88.36
5	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	2167012		Shroud, Light		Appelez-nous	-
8	WP2174249K		Shelf (1)   (Replaces: 2174249)				$ 221.75
8	2174265		Shelf (2)		Appelez-nous	-
9	2179325		Shelf		Appelez-nous	-
10	2171707		Bin, Freezer		Appelez-nous	-
11	WP3400806		Screw   (Replaces: 8281158)				$ 8.10
12	2176134		Grommet (10)				$ 5.83
13	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.87
14	2155571		Cover, Wiring		Appelez-nous	-
15	W11233072		Screw   (Replaces: 489355)			Immediately	$ 14.72
16	2174266		Shelf		Appelez-nous	-
17	W10136387A		Ice Bin   (Replaces: 2164333)				$ 19.54
18	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
19	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 39.09
20	2196207		Stud, Rear				$ 7.61
21	2185731		Seal, Hole		Appelez-nous	-
22	W10142289		Screw   (Replaces: 3400893)				$ 9.61
23	1115383		Slide, Freezer Bin (left Side)		Appelez-nous	-
23	W10845583		Slide, Freezer Bin (right Side)   (Replaces: 1119293)				$ 130.12
24	718257		Screw   (Replaces: 489100)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
