SELECT A DIAGRAM

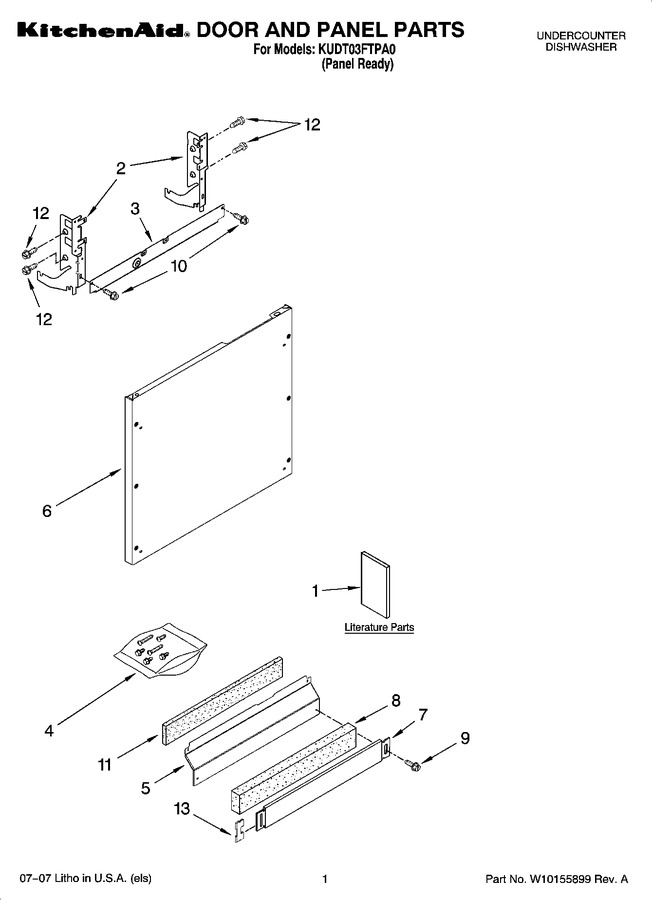

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill, Drain, And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts


12 - Third Level Rack And Track Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10078153		Instructions, Installation		Appelez-nous	-
1	W10111124		Energy Guide		Appelez-nous	-
1	8574093		Guide, Use & Care		Appelez-nous	-
1	W10078203		Guide, Consumer Reference		Appelez-nous	-
1	W10082651		Tech Sheet		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 128.15
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 128.02
3	8564886		Stiffener, Door		Appelez-nous	-
4	8531882		Screws, Bag Door Assembly				$ 15.36
5	W11763736		Access Panel (includes Item 11)   (Replaces: 8558260)			Immediately	$ 38.03
6	W11113792		Panel, Full Front   (Replaces: 8535133)			Immediately	$ 336.08
7	W10871196		Toe Panel (includes Items 8 & 13)   (Replaces: 8558252)				$ 156.64
8	W10831329		Insulation, Toe Panel   (Replaces: W10073550)			Immediately	$ 38.97
9	WP302868		Screw   (Replaces: 302868)			Immediately	$ 7.36
10	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
11	W10831329		Insulation, Access Panel   (Replaces: W10073540)			Immediately	$ 38.97
12	WP3400071		Screw   (Replaces: 3400071)				$ 7.43
13	WP8269016		Clip, Grounding   (Replaces: 8269016)				$ 10.09

    View Diagram in Separate Window       Print Part List
