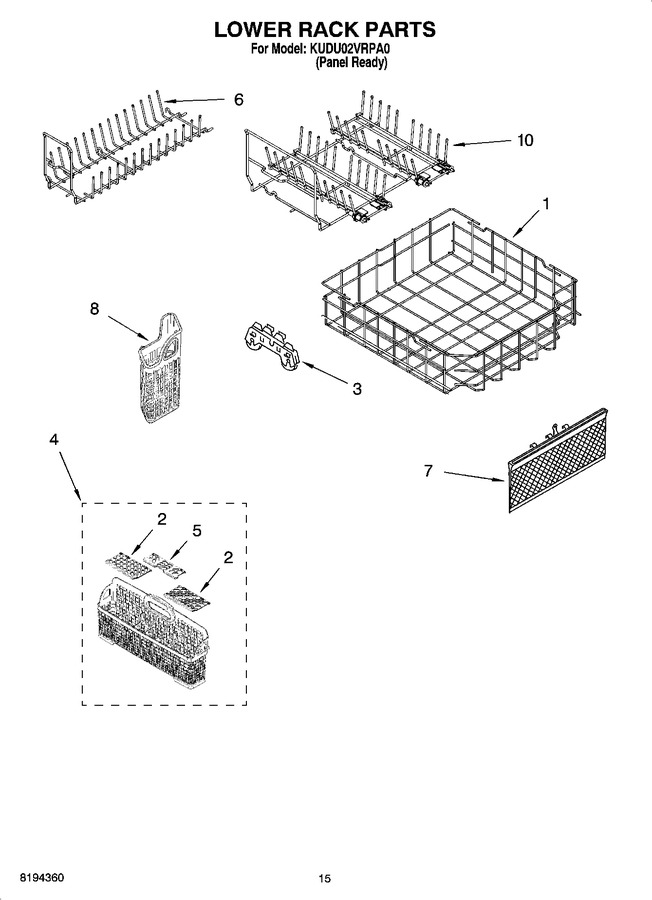

12 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11838895		Lower Rack Assembly   (Replaces: 8561733)				$ 159.66
2	8519663		Lid, Basket Silverware (right Side)				$ 85.22
2	8519695		Lid, Basket Silverware (left Side)				$ 22.43
3	WP8268713		Wheel & Transport Assembly   (Replaces: 8268713)				$ 85.47
4	WPW10190415		Basket, Silverware   (Replaces: 8531282)			Immediately	$ 104.90
5	8519662		Lid, Basket Center				$ 47.12
6	8562013		Insert, Large		Appelez-nous	-
7	8519716		Basket,small Items				$ 57.95
8	8519702		Basket-utensil				$ 39.71
10	WPW10086340		Insert, Double   (Replaces: 8562012)				$ 229.37
	4396840RC		Dishrack Repair (silver Atlantis)   (Replaces: 4396854)			Immediately	$ 66.67
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	4396838RC		Dishrack Repair (white)   (Replaces: 4396838)			Immediately	$ 66.67
	4396840RC		Dishrack Repair (grey)   (Replaces: 4396840)			Immediately	$ 66.67
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	8212505		Accessories Side Panel Kits (stainless Steel)		Appelez-nous	-
	8212506		Accessories Side Panel Kits (meteorite Custom Panel & Trim Kit)		Appelez-nous	-
	8212489		Accessories Side Panel Kits (black Moisture Barrier Kit)				$ 331.58
	4396277		Accessories Side Panel Kits (kit Towel Bar Handle Kit)				$ 43.89
	8573938		Accessories Side Panel Kits (stainless Steel Drain Hose)				$ 104.22
	3385556		Accessories Side Panel Kits (12 Ft. Vinyl Touch-up (4 Oz.))			Immediately	$ 34.43
	WP676453		Accessories Side Panel Kits (white)   (Replaces: 676453)			Immediately	$ 48.29
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	WP676455		Accessories Side Panel Kits (grey)   (Replaces: 676455)			Immediately	$ 41.27
	4396853		Accessories Side Panel Kits (silver Atlantis)				$ 36.13
	4392899		Accessories Side Panel Kits Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 24.99
	W10202939		Accessories Side Panel Kits Paint, Touch-up (1/2oz.) (meteorite)   (Replaces: 4396603)				$ 23.61
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
	285006		Accessories Side Panel Kits Paint, Pressurized Spray (12 Oz.) (superior Black)				$ 53.90
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	4317824		Power Cord Kit (includes Powercord & Misc.hardware)			Immediately	$ 17.79
	8171477		Floor Mount Kit				$ 56.20
	N/A		Dishrack Repair		Appelez-nous	-
