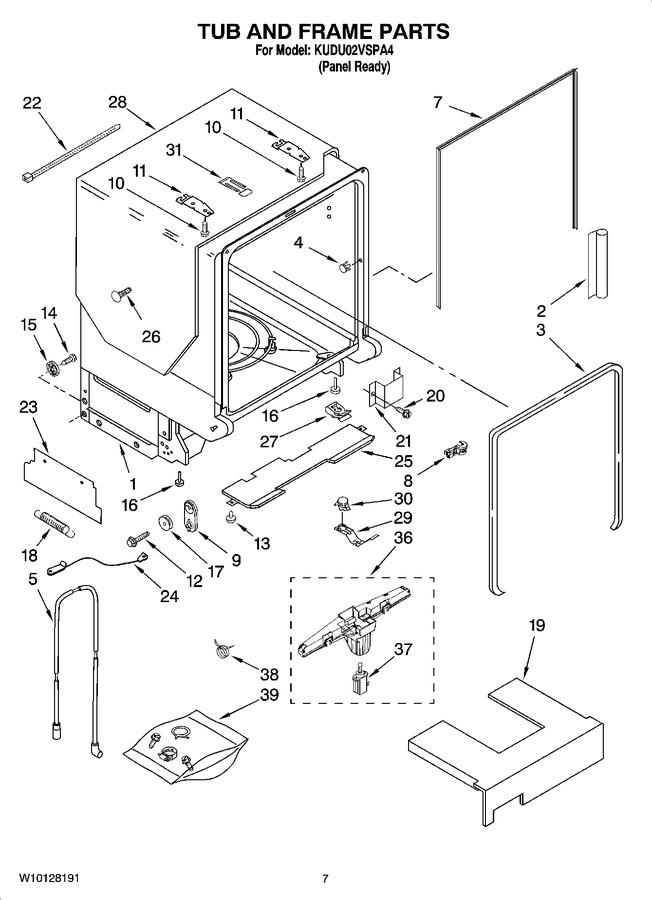

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10053140 | Tub Assembly |
|
- | |||||
| 2 | 8574123 | Barrier, Moisture Undercounter |
|
$ 71.34 | |||||
| 3 | W11196317 | Door Seal (Replaces: W10112096) |
|
Immediately | $ 101.92 | ||||
| 4 | W10795980 | Plug Tub (2) (Replaces: 8270119) |
|
Immediately | $ 13.55 | ||||
| 5 | WPW10358302 | Drain Loop With Check Valve (Replaces: 8531022) |
|
Immediately | $ 73.20 | ||||
| 7 | W10864081 | Seal, Cabinet (Replaces: 8269110) |
|
Immediately | $ 75.88 | ||||
| 8 | W11384788 | Strain, Relief (Replaces: 8573061) |
|
$ 20.33 | |||||
| 9 | 8194001 | Mount, Door Balance (Replaces: 8270021) |
|
Immediately | $ 38.75 | ||||
| 10 | WP308685 | Screw (Replaces: 3367670) |
|
Immediately | $ 7.08 | ||||
| 11 | WP8269145 | Bracket,undercounter (Replaces: 8269145) |
|
Immediately | $ 17.40 | ||||
| 12 | WP3400074 | Screw (2) (Replaces: 3400074) |
|
$ 6.80 | |||||
| 13 | WP3400924 | Retainer, Push-in (Replaces: 3400924) |
|
Immediately | $ 40.85 | ||||
| 14 | 3370389 | Screw (2) |
|
$ 5.70 | |||||
| 15 | WP8268977 | Wheel Leg (Replaces: 8268977) |
|
$ 13.67 | |||||
| 16 | 8193716 | Leveler, Leg (Replaces: 8524584) |
|
$ 80.06 | |||||
| 17 | 8194001 | Wheel, Door Balance (Replaces: 8524474) |
|
Immediately | $ 38.75 | ||||
| 18 | WP8270182 | Spring, Door Balance (Replaces: 8270182) |
|
Immediately | $ 36.29 | ||||
| 19 | W10831329 | Absorber, Sound (Replaces: 8545574) |
|
Immediately | $ 38.97 | ||||
| 20 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 7.42 | |||||
| 21 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 26.58 | |||||
| 22 | 8539404 | Strap |
|
$ 4.52 | |||||
| 23 | 8537001 | Shield, Side |
|
- | |||||
| 24 | 8194001 | Link, Door Balance (Replaces: 8535568) |
|
Immediately | $ 38.75 | ||||
| 25 | WPW10746770 | Insulator, Sound (Replaces: 8268582) |
|
$ 40.36 | |||||
| 26 | WP304666 | Retainer, Push (2) (Replaces: 304666) |
|
$ 26.51 | |||||
| 27 | WP8269016 | Clip, Grounding (Replaces: 8269016) |
|
$ 10.09 | |||||
| 28 | W10877094 | Shield, Sound Tub (Replaces: 8573239) |
|
$ 210.27 | |||||
| 29 | 9742648 | Bracket,thermostat |
|
$ 51.51 | |||||
| 30 | WP661566 | Thermostat (Replaces: 661566) |
|
Immediately | $ 28.15 | ||||
| 31 | WP8574157 | Strike, Latch (Replaces: 8574157) |
|
Immediately | $ 92.19 | ||||
| 36 | WP8572661 | Actuator Assembly (Replaces: 8572661) |
|
$ 130.24 | |||||
| 37 | 8559844 | Motor, Wax |
|
$ 140.12 | |||||
| 38 | WP356138 | Clamp, Hose (1) (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 39 | WPW10292170 | Miscellaneous Parts Bag (includes 2 Screws &2 Hose Clamps) (Replaces: 8269297) |
|
$ 87.23 |
