SELECT A DIAGRAM

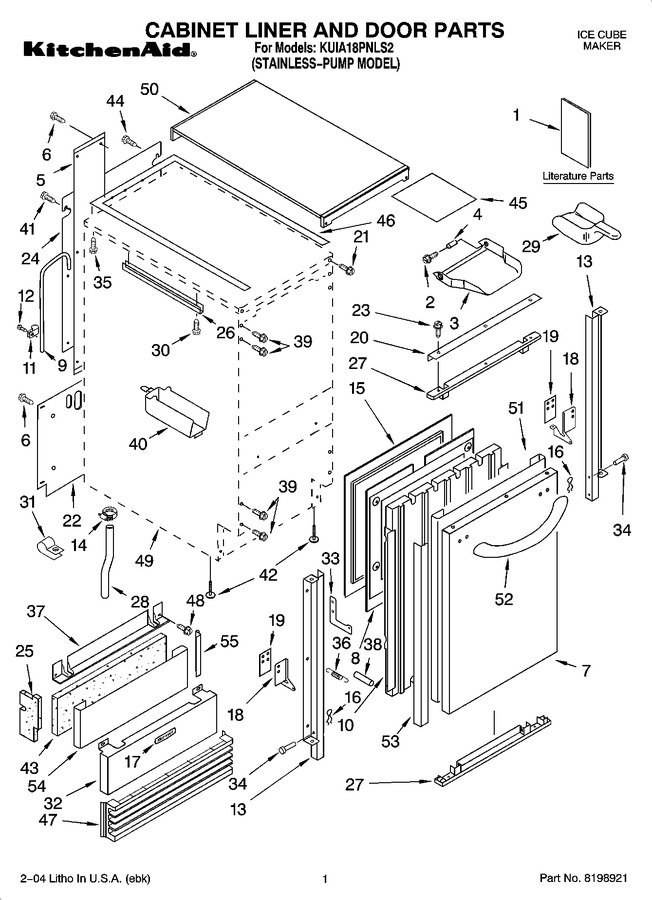

01 - Cabinet Liner And Door Parts


02 - Evaporator Ice Cutter Grid And Water Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2217408		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT2217232		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
2	3400886		Screw 8-18 X 1 1/4				$ 5.65
3	2208354		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 9.93
5	2217394		Cover, Wiring		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
7	2208593S		Panel, Wrap		Appelez-nous	-
8	2217298		Panel, Interior		Appelez-nous	-
9	2185926		Tube, Air Vent		Appelez-nous	-
10	2208377		Insulation		Appelez-nous	-
11	WP2208367		Clamp, Half   (Replaces: 2208367)				$ 65.88
12	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 7.54
13	2217465		Bracket, Door (right Side)   (Replaces: 2208375)		Appelez-nous	-
13	2217466		Bracket, Door (left Side)   (Replaces: 2208376)		Appelez-nous	-
14	WP489503		Clamp   (Replaces: 489503)			Immediately	$ 10.16
15	W11624959		Gasket, Door   (Replaces: 2217295)				$ 220.36
16	2208535		Clip				$ 7.73
17	2217214B		Nameplate (black)		Appelez-nous	-
18	2208426		Hinge (right Side)		Appelez-nous	-
18	2208425		Hinge (left Side)		Appelez-nous	-
19	2208401		Shim, Hinge		Appelez-nous	-
20	WP2208452B		Handle, Icemaker   (Replaces: 2208452B)				$ 103.83
21	8281184		Screw 8-18 X 1/2		Appelez-nous	-
22	WPW10136200		Assembly, Unit Cover   (Replaces: 2208399)				$ 102.33
23	8281186		Screw, Handle (black)		Appelez-nous	-
24	W10218024		Ballast-back, Im   (Replaces: 2217227)		Appelez-nous	-
25	2217225		Pad, Foam		Appelez-nous	-
26	2185691		Channel, Wiring		Appelez-nous	-
27	W11413461		Endcap, Door (black)   (Replaces: 2208350B)		Appelez-nous	-
28	2208459		Tube, Drain		Appelez-nous	-
29	W11420408		Scoop   (Replaces: 2208386)				$ 25.75
30	WP3400884		Screw 8-18 X 5/8   (Replaces: 3400884)				$ 7.29
31	WP488366		Clamp   (Replaces: 489385)				$ 10.73
32	2208382B		Panel, Wrap Lower (black)		Appelez-nous	-
33	2208487		Bracket, Spring		Appelez-nous	-
34	2208417		Pin, Hinge		Appelez-nous	-
35	WP250830		Screw, Ground 8-32 X 1/2   (Replaces: 489048)				$ 7.90
36	WP2208570		Spring, Hinge   (Replaces: 2208570)				$ 21.41
37	2208383B		Endcap, Panel (black)		Appelez-nous	-
38	2208530		Dampener, Spring		Appelez-nous	-
39	WP999367		Screw 10-32x11/16   (Replaces: 489423)				$ 7.70
40	2208449		Holder, Scoop		Appelez-nous	-
41	WP90767		Screw   (Replaces: 8281193)			Immediately	$ 7.43
42	8193716		Leg, Leveler (4)   (Replaces: 3374849)			Immediately	$ 80.06
43	2208384		Insulation		Appelez-nous	-
44	WP90767		Screw   (Replaces: 8281192)			Immediately	$ 7.43
45	2185690		Shield, Electrical		Appelez-nous	-
46	2217296		Gasket, Top Panel		Appelez-nous	-
47	WP2217206B		Grill, Front (black)   (Replaces: 2217206B)				$ 104.65
48	WP489474		Screw 8-18 X 1   (Replaces: 489474)			Immediately	$ 7.70
50	2929701B		Top (black)		Appelez-nous	-
51	2308352B		Panel, Exterior (black)		Appelez-nous	-
52	2208597S		Handle, Bar		Appelez-nous	-
53	2208595B		Grommet, Edge Guard(2)		Appelez-nous	-
54	2208594S		Panel, Lower				$ 218.92
55	978030		Valve, Access (3/4``)				$ 123.53
55	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
55	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
55	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
55	978028		Valve, Access (1/2)		Appelez-nous	-
55	978029		Valve Access (5/8``)				$ 93.85
55	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
55	2208596B		Grommet, Edge Guard(2)		Appelez-nous	-
55	N/A		Parts Not Illustrated And Optional Parts (not Included)		Appelez-nous	-
55	W11179302		Cleaner, Icemaker   (Replaces: 8171307)			Immediately	$ 31.34
55	2261590		Cleaner (stainless Steel)		Appelez-nous	-
55	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 104.81
55	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 86.78
55	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 218.83
55	978026		Valve, Access (5/16``)			Immediately	$ 121.04
