Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP2185532 Bracket, Fan Mtg.   (Replaces: 2185532) Special Order $ 91.96

2 2185675 Pad, Foam Appelez-nous -
3 WP2188935 Blade, Fan   (Replaces: 2188935) In-Stock Immediately $ 87.56

4 W10124096 Motor & Mounting Plate Assembly   (Replaces: 2315558) In-Stock Immediately $ 146.83

5 W10193296 Wiring Harness, Complete Unit (includes Power Cord) Appelez-nous -
6 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 7.56

7 WPW10605286 Compressor (includes Illus. 11 & 23)   (Replaces: W10136195) Special Order $ 696.08

8 A201435 Clip, Mounting Appelez-nous -
9 A201441 Shim (4) Special Order $ 8.33

10 2185960 Clamp-service Cord Appelez-nous -
11 2185965 Grommet (4) (production)   (Replaces: 2217318) Appelez-nous -
11 WP4387558 Grommet (4) (service)   (Replaces: 4387558) Special Order $ 6.57

12 W10528572 Tube, Process   (Replaces: 2208415) Special Order $ 34.91

13 WP489464 Screw   (Replaces: 8281265) In-Stock Immediately $ 7.54

14 489472 Screw Appelez-nous -
15 WPW10206473 Coil, Solenoid   (Replaces: W10206473) Special Order $ 175.00

16 W11748341 Hot Gas Valve   (Replaces: 2313806) In-Stock Immediately $ 91.69

17 WP2187629 Wiring Harness, Condenser Fan   (Replaces: 2187629) Special Order $ 119.32

18 W10136197 Start Relay & Overload Combo Device Special Order $ 76.43

19 851095 Strap Appelez-nous -
20 W10282061 Shield,heat Appelez-nous -
23 W10843121 Drier (production)   (Replaces: 2319826) In-Stock Immediately $ 51.42

23 W10843121 Drier (service)   (Replaces: W10183199) In-Stock Immediately $ 51.42

24 WP2313624 Condenser   (Replaces: 2313624) Special Order $ 329.73

26 W10852725 Grommet, Cond (1)   (Replaces: 2319835) Special Order $ 7.28

27 2217397 Pad, Foam (2) Appelez-nous -
29 8281197 Screw Appelez-nous -
30 2217445 Base, Unit Appelez-nous -
31 WP8281196 Screw   (Replaces: 8281196) In-Stock Immediately $ 6.80

NI N/P Refrigerant Charge (6.5 Oz. (r134a)) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

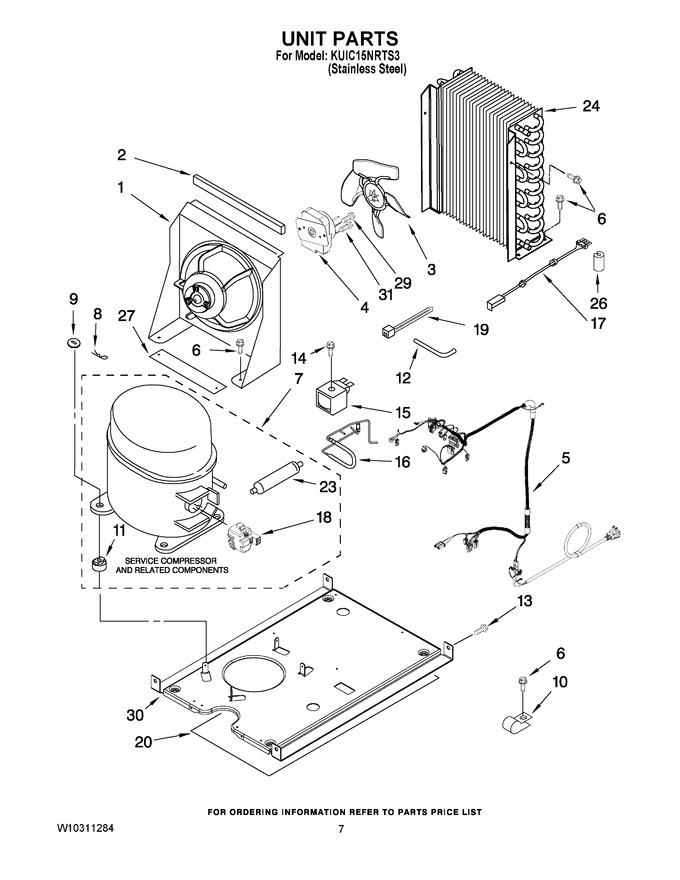

Diagram for KUIC15NRTS3
