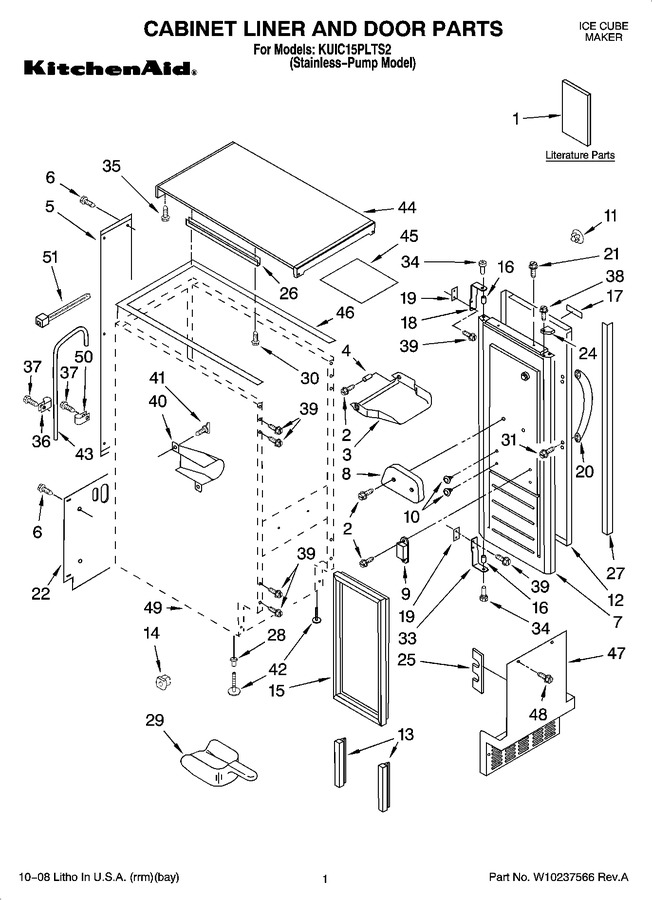

01 - Cabinet Liner And Door Parts


02 - Evaporator, Ice Cutter Grid And Water Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10136156		Use & Care Guide		Appelez-nous	-
1	W10163556		Service & Wiring Sheet		Appelez-nous	-
2	3400886		Screw 8-18 X 1 1/4				$ 5.65
3	2185742		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 9.93
5	2217394		Cover, Wiring		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
7	2932803B		Door		Appelez-nous	-
8	2185695		Cam, Door				$ 86.09
9	W11223751		Assembly, Magnetic Catch   (Replaces: 2217393)				$ 56.16
10	WP941839		Plug, Hole   (Replaces: 941839)				$ 7.23
11	WP2189000		Hole Plug, Handle   (Replaces: 2189000)			Immediately	$ 6.99
12	2313816		Wrap, Door		Appelez-nous	-
13	2217367		Gasket, Bottom		Appelez-nous	-
14	WP692400		Nut, Push-in   (Replaces: 692400)			Immediately	$ 7.22
15	WP2217294		Gasket, Door   (Replaces: 2217294)				$ 257.38
16	2185640		Sleeve, Hinge		Appelez-nous	-
17	W10046610		Nameplate				$ 33.40
18	2185710		Hinge, Top				$ 84.94
19	2185709		Shim, Hinge		Appelez-nous	-
20	WP9872207S		Handle, Door   (Replaces: 9872207S)				$ 174.56
21	8281186		Screw		Appelez-nous	-
22	WPW10136199		Assembly, Unit Cover   (Replaces: W10136199)				$ 97.97
24	2185656B		Filler, Endcap (right Side)		Appelez-nous	-
24	2185655B		Filler, Endcap (left Side)		Appelez-nous	-
25	W10532250		Pad, Foam   (Replaces: 2185756)		Appelez-nous	-
26	2185691		Channel, Wiring		Appelez-nous	-
27	2185964		Grommet, Edge Guard (2)				$ 17.98
28	3400240		Nut, Leg Leveler		Appelez-nous	-
29	W11420408		Scoop   (Replaces: 585158)				$ 25.75
30	WP3400884		Screw 8-18 X 5/8   (Replaces: 3400884)				$ 7.29
31	WP3400237		Screw 10-32 X 3/8   (Replaces: 3400237)				$ 7.30
33	2185711		Hinge, Bottom				$ 86.72
34	2185712		Pin, Hinge				$ 44.43
35	WP250830		Screw, Ground 8-32 X 1/2   (Replaces: 489048)				$ 7.90
36	WP2208367		Clamp   (Replaces: 2208367)				$ 65.88
37	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 7.54
38	348689		Screw 8-18 X 3/4				$ 70.26
39	WP999367		Screw   (Replaces: 489423)				$ 7.70
40	2185927		Holder, Scoop				$ 80.16
41	8281228		Thumbscrew		Appelez-nous	-
42	8193716		Leg, Leveler (4)   (Replaces: 3374849)				$ 80.06
43	2217467		Tube, Air Vent		Appelez-nous	-
44	2929700B		Top		Appelez-nous	-
45	2185690		Shield, Electrical		Appelez-nous	-
46	W11624957		Gasket, Top Panel   (Replaces: W10163530)		Appelez-nous	-
47	WP2185571B		Grill, Front   (Replaces: 2185571B)				$ 217.47
48	WP489474		Screw 8-18 X 1   (Replaces: 489474)			Immediately	$ 7.70
50	W10861184		Clamp   (Replaces: 489505)				$ 59.31
51	WPW10339879		Strap   (Replaces: 2155774)				$ 7.47
