Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 1115380 Slide, Ice Door Appelez-nous -
3 2171712 Door, Ice Compartment Special Order $ 69.91

4 2215823 Clip, Air Duct (2)   (Replaces: 842534) Special Order $ 10.94

5 WPW10318951 Shelf, Wire   (Replaces: 2309632) Special Order $ 85.76

6 WPW10130299 Shelf Cup   (Replaces: W10130299) In-Stock Immediately $ 14.70

7 WPW10318953 Shelf   (Replaces: 2309634) In-Stock Immediately $ 87.76

8 WP2309758 Freezer Bin   (Replaces: 2309758) In-Stock Immediately $ 130.69

9 WPW10318952 Shelf Wire   (Replaces: 2309633) In-Stock Immediately $ 92.48

10 W10845583 Slide (right Side)   (Replaces: 1119293) Special Order $ 130.12

10 W10845585 Slide (left Side)   (Replaces: 1119237) Special Order $ 139.41

11 W11457217 Switch, Rocker Arm   (Replaces: 2321285) Special Order $ 40.09

12 718257 Screw   (Replaces: 489100) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

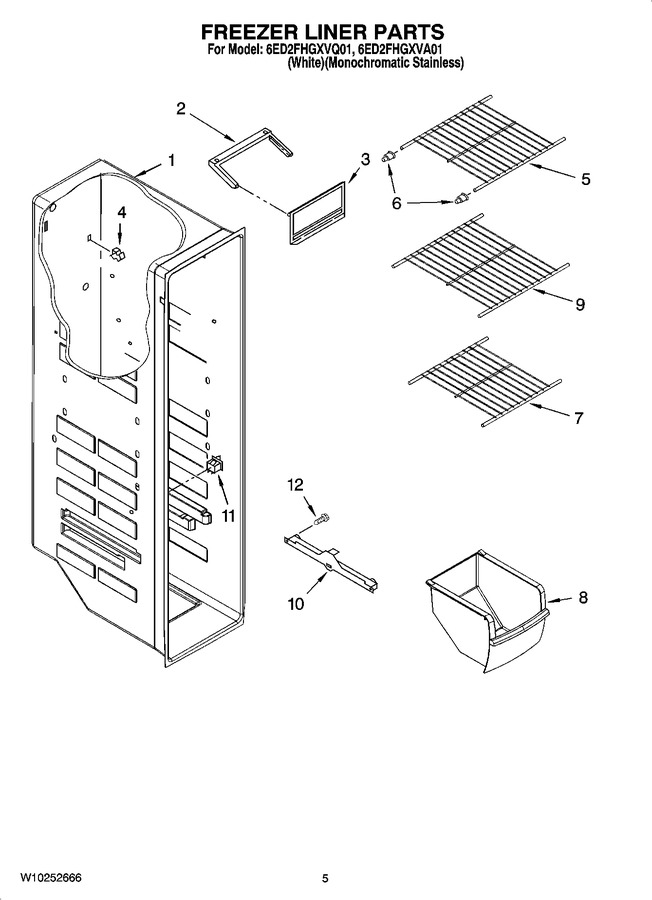

Diagram for 6ED2FHGXVQ01
