SELECT A DIAGRAM
01 - Cabinet Parts
02 - Shelf Parts

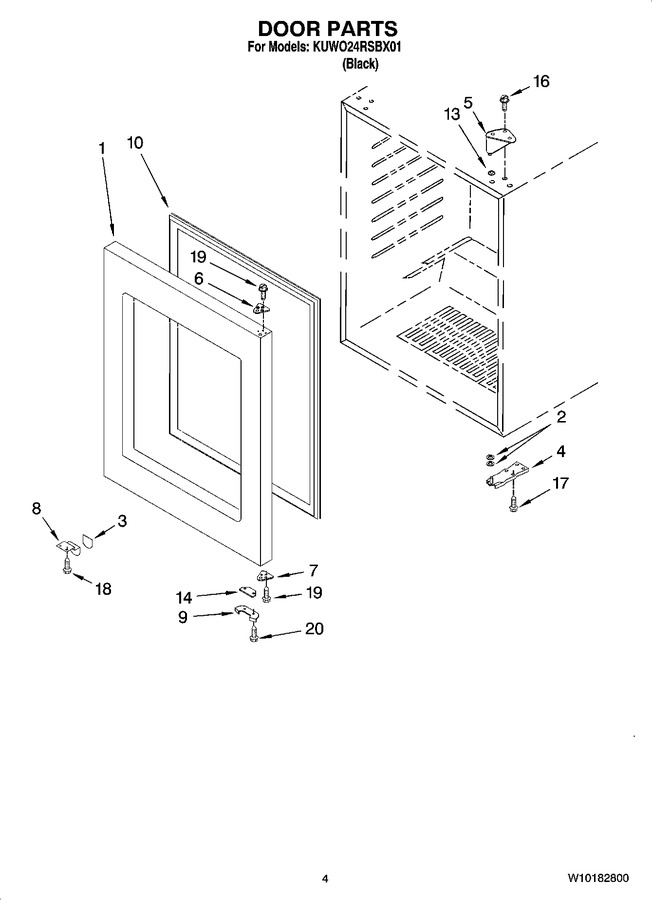

03 - Door Parts
04 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4344890 | Door Assembly (includes Gasket) |
|
- | |||||
| 2 | W11241702 | Washer, Bottom (Replaces: W10162992) |
|
$ 12.84 | |||||
| 3 | W10163191 | Gasket, Push Plate |
|
$ 14.85 | |||||
| 4 | W10239363 | Hinge, Bottom (Replaces: 4344753) |
|
$ 72.55 | |||||
| 5 | 4344754 | Hinge, Top |
|
$ 80.11 | |||||
| 6 | 4344804 | Spacer, Top Hinge |
|
$ 18.03 | |||||
| 7 | 4344798 | Spacer, Bottom Hinge |
|
$ 18.03 | |||||
| 8 | 4344757 | Actuator, Switch |
|
$ 138.67 | |||||
| 9 | 4344802 | Door Stop (Replaces: W10163283) |
|
$ 19.78 | |||||
| 10 | WPW10238068 | Door Gasket (Replaces: 4344852) |
|
$ 312.31 | |||||
| 13 | 4344760 | Washer |
|
$ 14.32 | |||||
| 14 | 4344803 | Spacer, Door |
|
$ 157.94 | |||||
| 16 | 4344796 | Screw |
|
$ 15.14 | |||||
| 17 | 4344797 | Screw, Lower Hinge (quantity 3) |
|
- | |||||
| 17 | 4344906 | Screw, Lower Hinge (quantity 1) |
|
- | |||||
| 18 | 4344827 | Screw |
|
- | |||||
| 19 | 4344800 | Screw |
|
- | |||||
| 20 | 4344801 | Screw |
|
$ 15.14 | |||||
| 4344818 | Installation Kit, Door Panel |
|
$ 129.52 |
