SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts

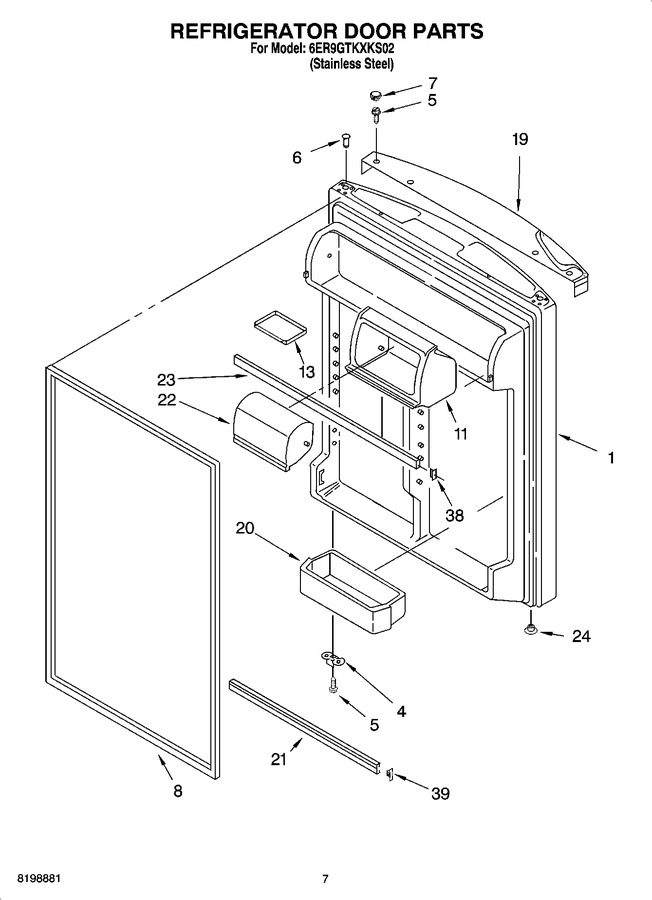

04 - Refrigerator Door Parts
05 - Unit Parts
06 - Freezer Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2218280 | Refrigerator Door (includes 6 & 8) |
|
- | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 7 | WP2212651 | Hole Plug (Replaces: 2212651) |
|
$ 24.21 | |||||
| 8 | 2177305 | Door Gasket, Magnetic (black) (Replaces: 2202881) |
|
$ 290.07 | |||||
| 11 | 2210566 | Housing Compartment |
|
$ 65.25 | |||||
| 13 | 2159302 | Tray, Door |
|
$ 42.08 | |||||
| 19 | 2225158 | Handle |
|
$ 73.91 | |||||
| 20 | 2204811 | Bin, Door Shelf (3) |
|
$ 35.90 | |||||
| 21 | WPW10421484 | Trim, Door Shelf (Replaces: 2195949) |
|
$ 136.25 | |||||
| 22 | 2218109 | Door, Compartment |
|
$ 33.66 | |||||
| 23 | 2159312 | Trim-door Shelf |
|
$ 47.75 | |||||
| 24 | 2204840 | Hole Plug, Handle |
|
$ 33.23 | |||||
| 38 | 2177340 | Endcap, Door Trim |
|
$ 5.84 | |||||
| 39 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.79 |
