Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1129615 Transformer Appelez-nous -
2 1129616 Bracket, Transformer Appelez-nous -
3 488539 Screw (4) Appelez-nous -
4 1129418 Enclosure, Terminal Block Appelez-nous -
5 1129419 Cover, Enclosure Appelez-nous -
6 1129449 Bushing Appelez-nous -
7 1129346 Terminal Block Appelez-nous -
8 488854 Screw, 8-32 X 3/8 (3) Appelez-nous -
9 00489346 Screw   (Replaces: 489346) Special Order $ 380.15

10 WPW10272364 Screw   (Replaces: 489211) In-Stock Immediately $ 11.36

11 489348 Clamp-nylon Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

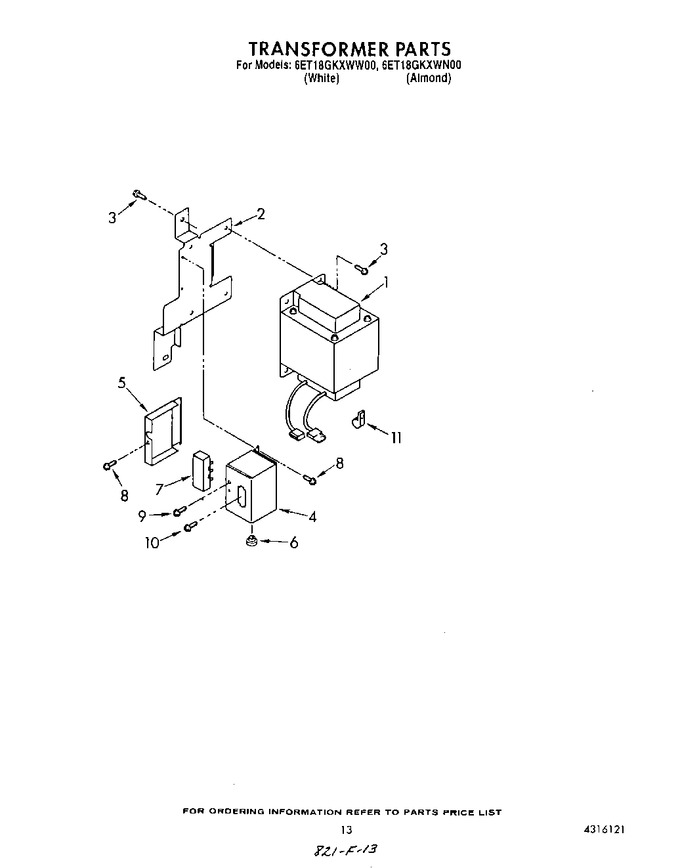

Diagram for 6ET18GKXWN00
