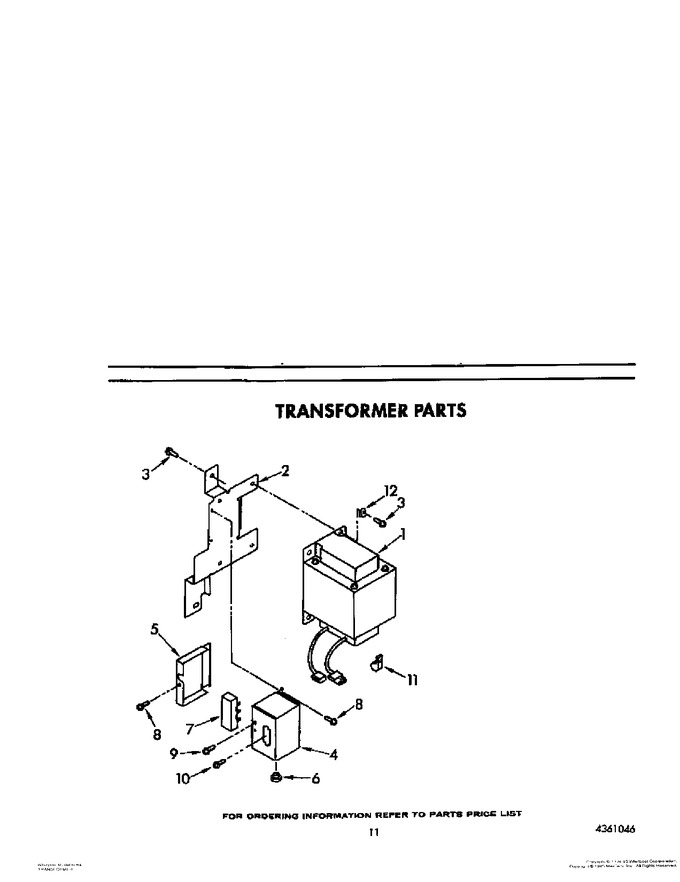

09 - Transformer, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1129615		Transformer		Appelez-nous	-
2	1129616		Bracket, Transformer		Appelez-nous	-
3	489364		Screw		Appelez-nous	-
4	1129418		Enclosuer, Terminal Block		Appelez-nous	-
5	1129419		Cover, Enclosure		Appelez-nous	-
6	1129449		Bushing		Appelez-nous	-
7	1129346		Terminal Block		Appelez-nous	-
8	488854		Screw, 8-32 X 3/8 (3)		Appelez-nous	-
9	00489346		Screw   (Replaces: 489346)				$ 380.15
10	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 11.36
11	489348		Clamp-nylon		Appelez-nous	-
12	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
12	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
12	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
12	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
12	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
12	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
12	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
12	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
12	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
12	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
12	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
12	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
12	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
12	261890		Enamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
12	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
12	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
12	978883		Enamel, Almont (1 Qt. Uncut)		Appelez-nous	-
12	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
12	833938		Kit, Terminal Connector				$ 8.47
12	836472		Clamp, Stiffener		Appelez-nous	-
12	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
12	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
12	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
12	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
12	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
12	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
12	350942		Primer White (13 Oz. Spray Can)				$ 94.14
12	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	1129316		Eckmf90			Immediately	$ 149.11
	LIT4361046		Parts List		Appelez-nous	-
	LIT2156411		Service & Wiring Sheet		Appelez-nous	-
	LIT1129607		Care & Use Guide		Appelez-nous	-
	LIT2148174		Care & Use Guide		Appelez-nous	-
	LIT1129610		Energy Label		Appelez-nous	-
