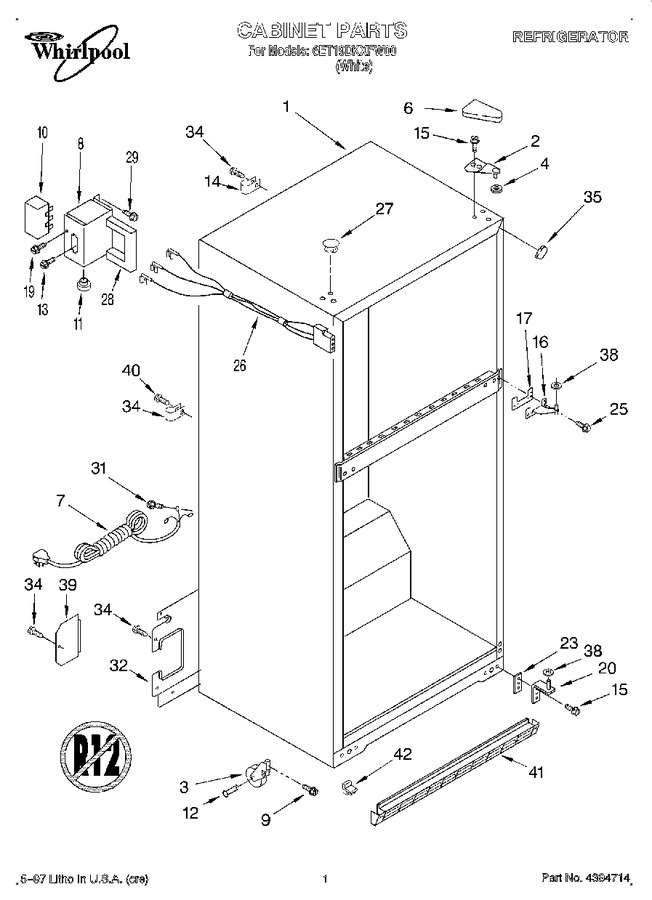

SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	WP2189412		Hinge, Top   (Replaces: 2157591)				$ 108.21
3	WP2166108		Roller-front   (Replaces: 2166108)			Immediately	$ 31.28
4	WP487576		Washer-nylon   (Replaces: 487576)			Immediately	$ 9.67
6	WP2213360		Cover-hinge   (Replaces: 2160403)				$ 18.17
7	1129331		Service Cord		Appelez-nous	-
8	2158579		Enclosure, Term.		Appelez-nous	-
9	2174650		Screw		Appelez-nous	-
10	1129346		Terminal Block		Appelez-nous	-
11	1129449		Bushing		Appelez-nous	-
12	W11594405		Rivet   (Replaces: 981126)			Immediately	$ 17.21
13	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 10.22
14	489348		Clamp		Appelez-nous	-
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
16	WP2254618		Hinge, Center   (Replaces: 2183972)			Immediately	$ 82.82
17	WP2183854		Shim, Hinge Center   (Replaces: 2183854)				$ 10.29
19	WP489399		Screw   (Replaces: 489399)				$ 6.57
20	WP2254473		Hinge Butt   (Replaces: 2189194)				$ 8.35
23	2172743		Shim, Bottom Hinge				$ 33.55
25	WP999367		Screw   (Replaces: 489423)				$ 7.70
26	2166651		Wire Assembly		Appelez-nous	-
27	WP2151652		Hole Plug (6)   (Replaces: 2151652)				$ 20.58
28	2167227		Gasket		Appelez-nous	-
29	WP250830		Screw   (Replaces: 489048)				$ 7.90
31	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
32	2254582		Cover, Unit   (Replaces: 2189059)				$ 121.26
34	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
35	WPW10283959		Corner Filler   (Replaces: 2183978)				$ 7.39
38	WP489467		Washer   (Replaces: 489341)			Immediately	$ 10.28
39	2166251		Cover, Water Valve				$ 6.43
40	WP488366		Tube Clamp   (Replaces: 489385)				$ 10.73
41	2189157		Grille		Appelez-nous	-
42	2166156		Corner Filler, Grille		Appelez-nous	-
