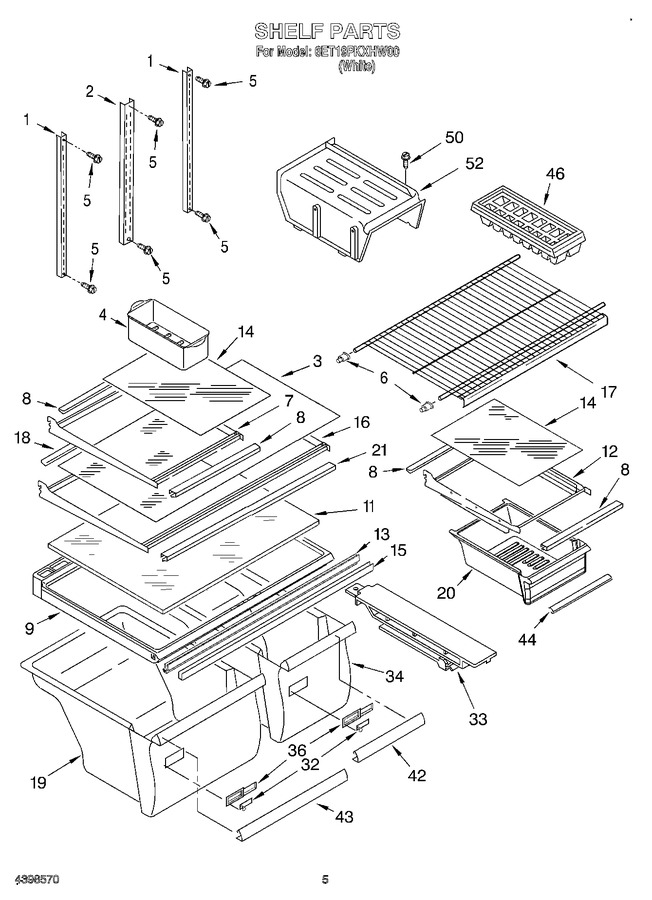

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2202822		Shelf, Ladder (2)		Appelez-nous	-
2	2202821		Shelf, Ladder Center		Appelez-nous	-
3	2177824		Glass, Full Shelf				$ 139.59
4	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 19.54
5	WP489478		Screw   (Replaces: 489478)				$ 8.18
6	WPW10130299		Cup, Shelf   (Replaces: 2163762)			Immediately	$ 14.70
7	2201101		Shelf, Cantilever				$ 76.57
8	2201097		Trim, Shelf		Appelez-nous	-
9	WP2314548		Cover, Crisper   (Replaces: 2195342)				$ 259.83
11	WP2169921		Glass, Crisper Cover   (Replaces: 2169921)				$ 258.93
12	2201105		Shelf, Cantilever Meat Pan				$ 78.45
13	2172683		Gasket, Crisper Cover		Appelez-nous	-
14	2169917		Glass, Half Shelf				$ 84.17
15	WP2172748		Crisper Support   (Replaces: 2172541)				$ 102.08
16	2201103		Shelf, Full Cantilever				$ 88.86
17	WP2176275		Shelf, Freezer   (Replaces: 2176275)				$ 123.40
18	2193394		Trim, Shelf Rear		Appelez-nous	-
19	W10854037		Pan, Crisper Wide   (Replaces: 2201027)			Immediately	$ 179.19
20	WP2218127K		Pan, Meat   (Replaces: 2201031)				$ 146.80
21	2201135		Trim, Shelf Front		Appelez-nous	-
32	WP2176222		Slide, Crisper   (Replaces: 2176222)				$ 27.35
33	WP2163835		Crisper Track, Center   (Replaces: 2163835)			Immediately	$ 36.48
34	W10856580		Pan, Crisper   (Replaces: 2201026)			Immediately	$ 177.03
36	W11819839		Body, Humidity Control   (Replaces: 2176223)				$ 15.81
42	2195340		Trim, Crisper Pan				$ 7.07
43	WP2195341		Trim, Crisper Pan   (Replaces: 2195341)				$ 86.67
44	2176356		Trim, Meat Pan		Appelez-nous	-
46	WP841180A		Ice Cube Tray   (Replaces: 841180)			Immediately	$ 47.84
50	WP489478		Screw   (Replaces: 489478)				$ 8.18
52	2183995		Shelf, Ice Tray		Appelez-nous	-
