Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/A Housing, Dispenser (not A Serviceable Part) Appelez-nous -
2 WP489128 Screw   (Replaces: 488500) Special Order $ 11.40

3 WP2194719 Retainer, Levers   (Replaces: 2194719) In-Stock Immediately $ 12.36

4 WPW10224328 Spring, Torsion   (Replaces: 2180209) Special Order $ 87.40

5 WP2196195 Pin   (Replaces: 2196195) Special Order $ 15.31

6 WP2180353 Door, Ice   (Replaces: 2203886) In-Stock Immediately $ 26.83

7 2206423 Door Mechanism Assembly Appelez-nous -
8 2205686 Mechanism Delay Appelez-nous -
9 2207007TG Grille, Overflow (tempest Grey) Appelez-nous -
9 2207007W Grille, Overflow (white) Special Order $ 29.56

10 WP4388152 Water Fitting Assembly (includes Water Tube)   (Replaces: 2180225) Special Order $ 290.25

11 2203562TG Lever, Ice Dispenser (tempest Grey (storm Grey Pad)) Appelez-nous -
11 WP2203562W Lever, Ice Dispenser (white (white Shadow Pad))   (Replaces: 2203562W) Special Order $ 113.04

12 WP2180224 Guide, Ice   (Replaces: 2180224) In-Stock Immediately $ 30.02

13 2180200 Lamp Holder Special Order $ 103.59

14 WP2162361 Switch (4)   (Replaces: 2162361) In-Stock Immediately $ 28.71

15 WP2180226 Bracket, Control   (Replaces: 2183771) In-Stock Immediately $ 26.97

16 989331 Bulb, Light Appelez-nous -
17 2203561TG Lever, Water Dispenser (tempest Grey (storm Grey Pad)) Appelez-nous -
17 2203561W Lever, Water Dispenser (white (white Shadow Pad)) Special Order $ 100.78

18 WP2180236 Switch Assembly (also Order No. 19)   (Replaces: 2180236) Special Order $ 288.00

19 2206188W Overlay, Front Cover (white) Appelez-nous -
19 2206188TG Overlay, Front Cover (tempest Grey) Appelez-nous -
20 2311650 Wire Assembly   (Replaces: 2196199) Special Order $ 94.16

21 N/A Front Cover, Housing (not Available, Order No.23) Appelez-nous -
22 WP3400906 Screw   (Replaces: 489000) Special Order $ 9.05

23 2207084W Front Cover Assembly (includes Items 18, 19, 20 & 21) (white) Appelez-nous -
23 2207084TG Front Cover Assembly (includes Items 18, 19, 20 & 21) (tempest Grey) Appelez-nous -
24 625834 Spacer, Switch (2) Special Order $ 7.99

25 WP2195051 Strain Relief   (Replaces: 2195051) Special Order $ 12.54

26 2169477 Connector Appelez-nous -
27 WP3400065 Screw   (Replaces: 3400065) In-Stock Immediately $ 8.18

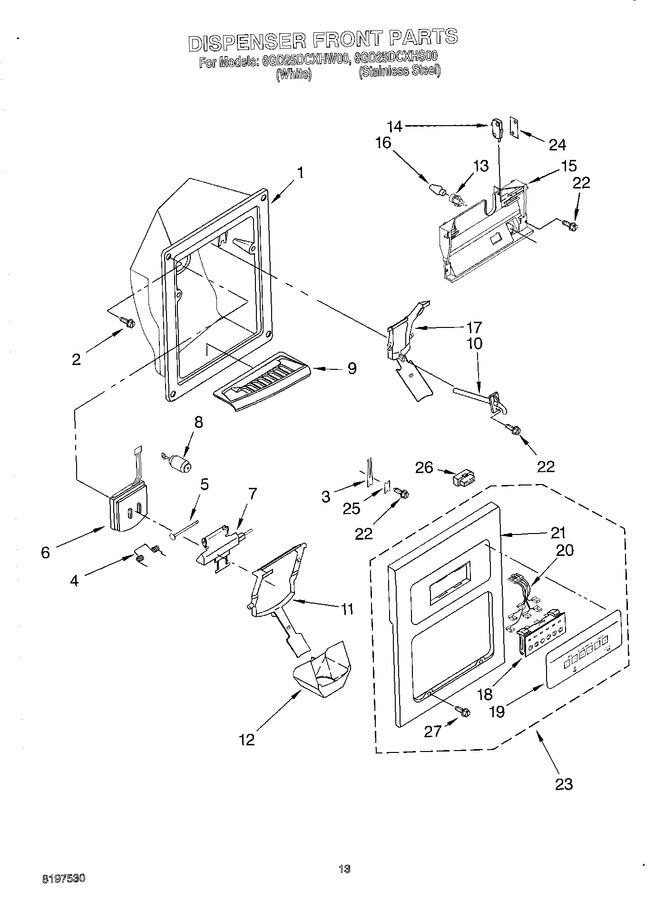

    View Diagram in Separate Window     Print Icon   Print Part List
