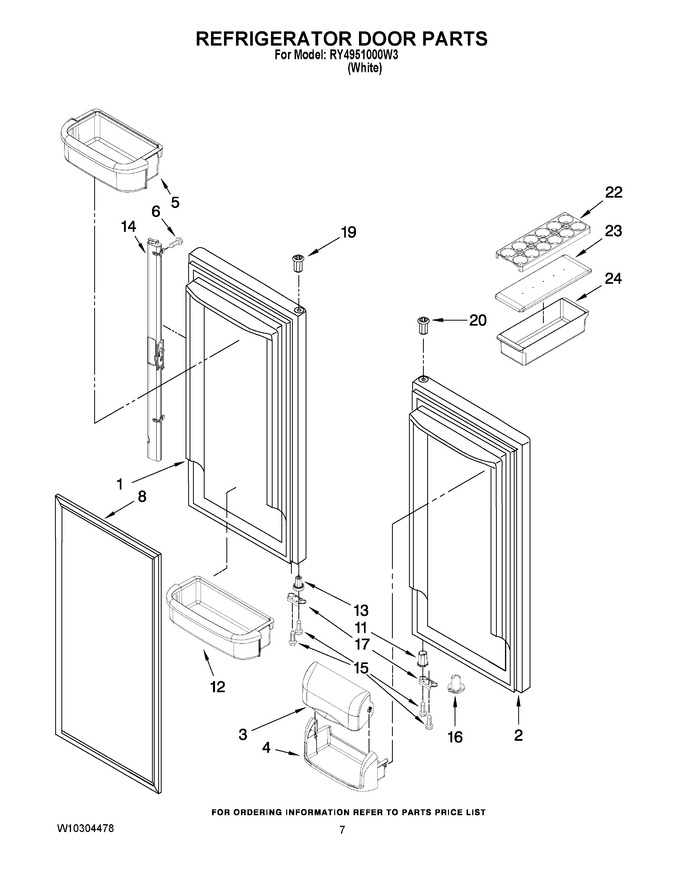

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12732428WQ		Door, Left (white)		Appelez-nous	-
2	12732422WQ		Door, Right (white)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 74.40
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 79.21
5	WPW10324005		Bin, Medium (3)   (Replaces: 12557212)				$ 69.98
6	W11311945		Screw   (Replaces: 12990204)				$ 13.25
8	W10830189		Gasket, Door (2) (white)   (Replaces: W10163894)				$ 255.07
11	12028601W		Bushing, Door (bottom Right)				$ 21.63
12	WPW10289494		Bin, Gallon (2)   (Replaces: 12699004)				$ 78.82
13	67002722		Bushing, Door (bottom Left)   (Replaces: 12699301W)				$ 19.95
14	12722811W		Mullion, Door (white)		Appelez-nous	-
15	WP98165		Screw   (Replaces: 12990504)				$ 7.71
16	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 7.34
17	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 62.36
19	12395501W		Bushing, Door Upper Left (white)		Appelez-nous	-
20	WP67004977		Bushing, Door Upper Right (white)   (Replaces: 10961006W)				$ 7.38
22	10436506S		Tray, Egg		Appelez-nous	-
23	10436404S		Lid-utility		Appelez-nous	-
24	10423131SP		Bin, Utility		Appelez-nous	-
