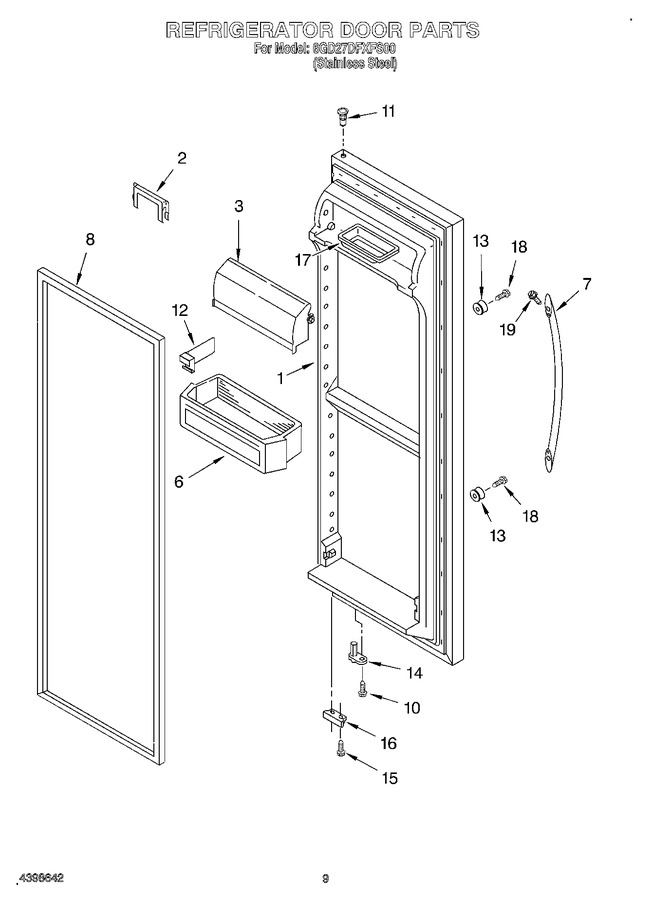

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2203402		Refrigerator Door (includes Item No.8)		Appelez-nous	-
2	2173643		Retainer, Bottle		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
6	2179608		Shelf Bin (4)		Appelez-nous	-
7	2204454		Handle (includes Item 19)		Appelez-nous	-
8	2159083		Door Gasket, Magnetic (service)				$ 332.76
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 8.15
12	2195496		Divider, Bin		Appelez-nous	-
13	2203690		Stud, Handle		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	2155331		Bracket, Door Stop		Appelez-nous	-
17	2165792		Tray, Butter		Appelez-nous	-
18	WP489463		Screw   (Replaces: 489463)				$ 8.25
19	98654		Set Screw		Appelez-nous	-
