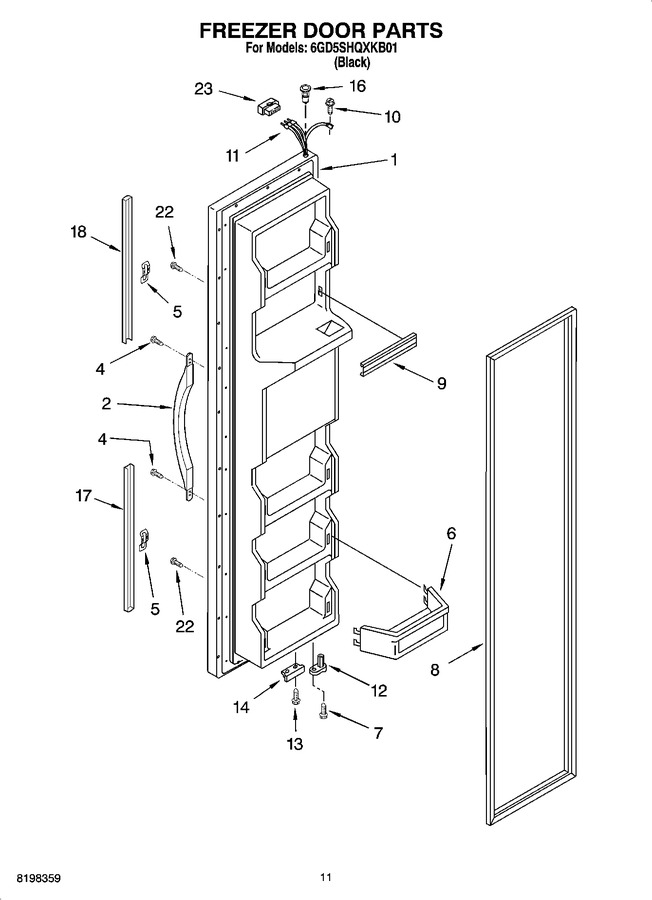

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2214638B		Freezer Door (includes Item 8 And Dispenser Front Parts)		Appelez-nous	-
2	2186649B		Handle, Center				$ 72.96
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.77
6	WP2171157		Trivet, Shelf (4)   (Replaces: 2171157)				$ 63.70
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	2159082		Door Gasket, Magnetic   (Replaces: 2221314)				$ 332.49
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 24.27
10	WP3400906		Screw   (Replaces: 489000)				$ 9.05
11	2311641		Wire Harness   (Replaces: 2206601)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	WP2206629B		Bracket, Door Stop   (Replaces: 2206629B)				$ 42.79
16	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
17	WP2194969B		Extension, Bottom   (Replaces: 2194969B)				$ 122.22
18	2194973B		Extension, Top		Appelez-nous	-
22	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
23	2169477		Connector		Appelez-nous	-
