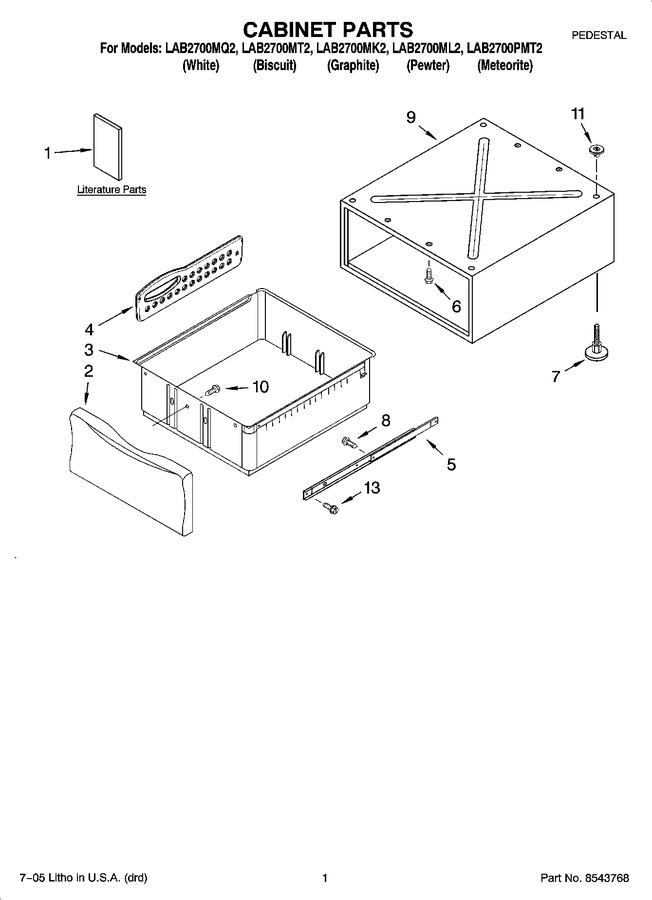

01 - Cabinet Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8543765 | Installation Instructions |
|
- | |||||
| 1 | 854376 | Parts List (8) |
|
- | |||||
| 2 | 8538016 | Drawer Front Assembly (graphite) |
|
- | |||||
| 2 | 8538018 | Drawer Front Assembly (meteorite) |
|
- | |||||
| 2 | 8538017 | Drawer Front Assembly (pewter) |
|
$ 29.70 | |||||
| 2 | 8538015 | Drawer Front Assembly (biscuit) |
|
- | |||||
| 2 | 8538014 | Drawer Front Assembly (white) |
|
$ 183.07 | |||||
| 3 | 8537934 | Drawer Bin (for Lab2700pmt) |
|
- | |||||
| 3 | 8537883 | Drawer Bin (for Lab2700mq, Lab2700mt, Lab2700mk, & Lab2700ml) |
|
$ 113.24 | |||||
| 4 | 8565576 | Divider, Drawer (set Of 2) (for Lab2700mq, Mt, Mk, And Ml) |
|
- | |||||
| 4 | 8565577 | Divider, Drawer (set Of 2) (for Lab2700pmt) |
|
- | |||||
| 5 | WP8578394 | Slide Assembly (Replaces: 8537850) |
|
$ 92.76 | |||||
| 6 | WPW10346892 | Screw (Replaces: 3400111) |
|
Immediately | $ 6.80 | ||||
| 7 | WP8563585 | Foot Assembly (Replaces: 8563585) |
|
Immediately | $ 13.28 | ||||
| 8 | WP3388228 | Screw, 6-20 X 3/8 (Replaces: 3400639) |
|
$ 6.57 | |||||
| 9 | N/A | Cabinet (not Serviced) |
|
- | |||||
| 10 | WP1163283 | Screw, 8-18 X 1/2 (Replaces: 3400842) |
|
$ 6.80 | |||||
| 11 | WP8537982 | Pad (4) (Replaces: 8537982) |
|
Immediately | $ 7.82 | ||||
| 13 | 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | |||||
| 13 | W10202939 | Paint, Touch-up 1/2 Oz. (meteorite) (Replaces: 4396603) |
|
$ 23.61 | |||||
| 13 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | ||||
| 13 | 8171357 | Paint, Pressurized Spray (12 Oz.) (graphite) |
|
$ 77.79 | |||||
| 13 | 4396175 | Paint, Pressurized Spray (12 Oz.) (pewter) |
|
- | |||||
| 13 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 13 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 13 | WP9740849 | Screw (Replaces: 9740849) |
|
$ 6.57 | |||||
| 13 | 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 24.99 | ||||
| 13 | 80051 | Paint, Touch-up (1/2oz.) (graphite) |
|
$ 7.64 | |||||
| 13 | WP4396174 | Paint, Touch-up (1/2oz.) (pewter) (Replaces: 4396174) |
|
$ 26.65 |
