SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section

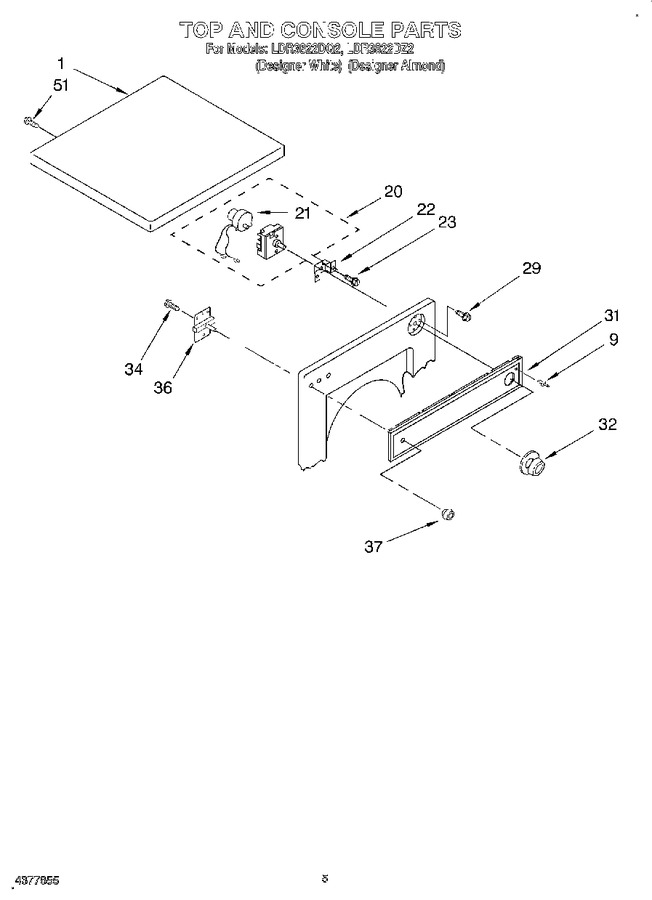

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	345703		Top (white)				$ 261.58
1	689250		Top (almond)		Appelez-nous	-
9	307563		Rivet, Pop (2)		Appelez-nous	-
20	WP8563881		Timer, 60 Hz.   (Replaces: 9830837)				$ 367.99
22	348171		Bracket, Timer		Appelez-nous	-
23	WP3400882		Screw, 8-32 X 7/32   (Replaces: 3400801)			Immediately	$ 7.55
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
31	9831667		Panel, Control (almond)		Appelez-nous	-
31	9831666		Panel, Control (white)		Appelez-nous	-
32	9831680		Timer Knob & Dial (almond)		Appelez-nous	-
32	9831679		Timer Knob & Dial (white)		Appelez-nous	-
34	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 8.25
36	9831692		Switch, Push-to-start		Appelez-nous	-
37	WP3957800		Knob, Push-to-start (white)   (Replaces: 3406133)				$ 52.92
37	WP3957800		Knob, Push-to-start (almond)   (Replaces: 3406134)				$ 52.92
51	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47

    View Diagram in Separate Window       Print Part List
