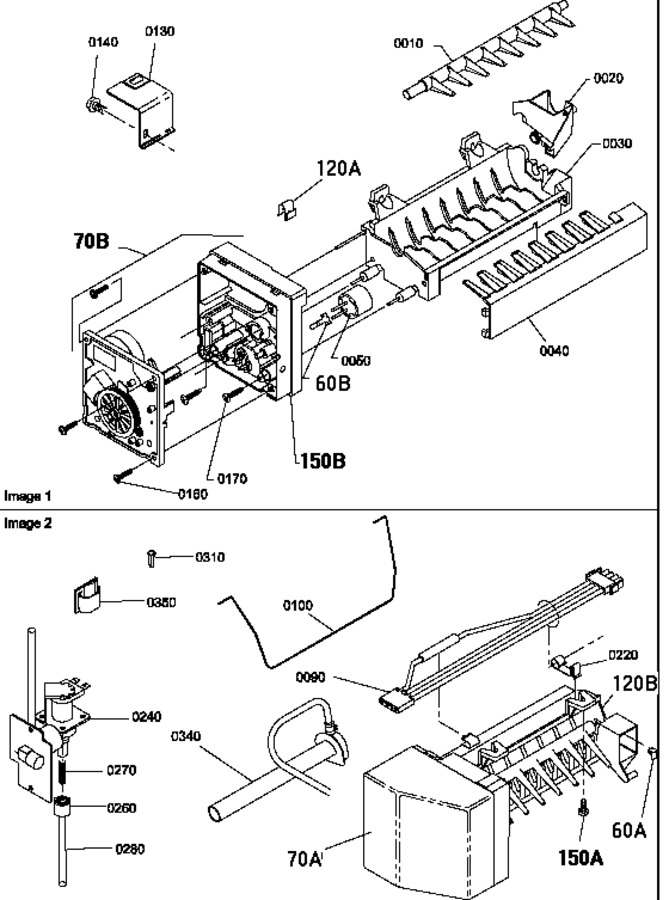

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10178404		O.c. Back Cover		Appelez-nous	-
2	M0227217		Screw, Sm		Appelez-nous	-
3	B5669014		Cord, Power		Appelez-nous	-
4	10178504		Cover - Wire		Appelez-nous	-
5	10893701		Harness, Cabinet		Appelez-nous	-
6	10377602		Insulation, Term Block		Appelez-nous	-
7	C8969202		Terminal Block		Appelez-nous	-
8	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.35
9	A3189336		Gasket, Foam		Appelez-nous	-
10	B5794201		Clamp		Appelez-nous	-
11	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 7.70
12	M0310319		Plug Button		Appelez-nous	-
13	M0219758		Screw		Appelez-nous	-
14	10786301		Jumper, Pwr Cord		Appelez-nous	-
15	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 7.56
16	WPB2150504		Drier   (Replaces: B2150504)				$ 123.28
17	10547001		Clip, Drier		Appelez-nous	-
18	Y10203701		Strain Relief		Appelez-nous	-
19	M0108001		Clamp, Tube		Appelez-nous	-
20	A4554813		Snap Bushing		Appelez-nous	-
21	M0232330		Screw, Spextite		Appelez-nous	-
22	M0104102		Clip, Cord				$ 8.10
23	M0272803		Lock Washer		Appelez-nous	-
NI	WPW10339879		Tie   (Replaces: M0321202)				$ 7.47

    View Diagram in Separate Window       Print Part List
