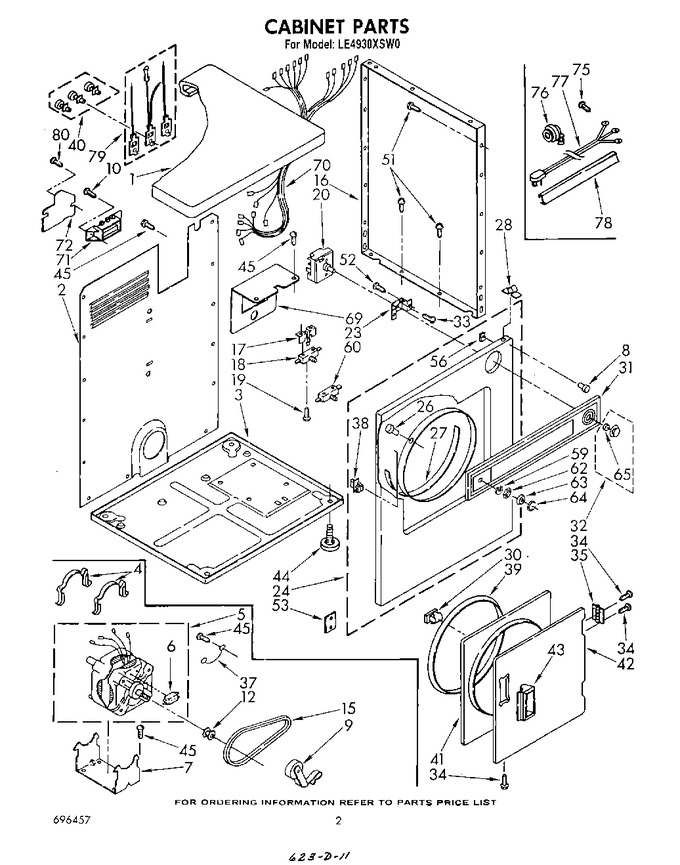

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 695191 | Top (platinum) |
|
- | |||||
| 1 | 689253 | Top (golden Harvest) |
|
- | |||||
| 1 | 689250 | Top (almond) |
|
- | |||||
| 1 | 345703 | Top (white) |
|
$ 235.42 | |||||
| 1 | 695190 | Top (toast) |
|
- | |||||
| 2 | 280050 | Panel, Rear (240 Volt) (Replaces: 349640) |
|
- | |||||
| 3 | WP348726 | Base Assembly (Replaces: 348726) |
|
$ 262.94 | |||||
| 4 | WP660658 | Clip, Motor (2) (alt.) (Replaces: 685441) |
|
$ 7.40 | |||||
| 4 | WP660658 | Clip, Motor (2) (alt.) (Replaces: 343481) |
|
$ 7.40 | |||||
| 4 | WP660658 | Clip, Motor (2) (Replaces: 660658) |
|
$ 7.40 | |||||
| 5 | 279827 | Motor, 60 Hz. (Replaces: 695074) |
|
Immediately | $ 195.48 | ||||
| 6 | 279827 | Switch (use W/695075 Motor) (Replaces: 337351) |
|
Immediately | $ 195.48 | ||||
| 7 | 696541 | Base, Motor (Replaces: 346846) |
|
$ 88.07 | |||||
| 8 | 694024 | Rivet, Plastic (4) |
|
- | |||||
| 9 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 10 | WP308685 | Screw (2) (10-16 X 1/2) (Replaces: 9416643) |
|
Immediately | $ 7.08 | ||||
| 12 | W10837625 | Pulley, 60 Hz. (Replaces: 694872) |
|
Immediately | $ 11.49 | ||||
| 15 | 3394652 | Belt, Drive (Replaces: 345675) |
|
Immediately | $ 47.09 | ||||
| 16 | 695195 | Panel, Side (platinum) |
|
- | |||||
| 16 | 689445 | Panel, Side (almond) |
|
- | |||||
| 16 | 689448 | Panel, Side (golden Harvest) |
|
- | |||||
| 16 | 695194 | Panel, Side (toast) |
|
- | |||||
| 16 | 348705 | Panel, Side (white) |
|
$ 115.02 | |||||
| 17 | WP691581 | Clip, Door Switch (Replaces: 295998) |
|
Immediately | $ 7.64 | ||||
| 18 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 27.45 | ||||
| 19 | WP98129 | Screw, 6-20 X 1-3/8 (2) (Replaces: 98129) |
|
$ 7.36 | |||||
| 20 | 690621 | Timer, 60 Hz. |
|
- | |||||
| 23 | 348171 | Bracket, Timer |
|
- | |||||
| 24 | 696936 | Xfront Panel Assembly (toast) |
|
- | |||||
| 24 | 691487 | Xfront Panel Assembly (almond) |
|
- | |||||
| 24 | 696937 | Xfront Panel Assembly (platinum) |
|
- | |||||
| 24 | 691490 | Xfront Panel Assembly (golden Harvest) |
|
- | |||||
| 24 | 691486 | Xfront Panel Assembly (white) |
|
- | |||||
| 26 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 21.20 | |||||
| 27 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 80.74 | ||||
| 28 | WP345670 | Lock, Top (2) (Replaces: 345670) |
|
Immediately | $ 7.28 | ||||
| 30 | 279570 | Catch, Door (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 31 | 696452 | Panel, Control |
|
- | |||||
| 32 | 696350 | Timer Knob & Skirt Assembly |
|
- | |||||
| 33 | W11808444 | Screw, 8-32 X 5/16 (2) (Replaces: 98139) |
|
- | |||||
| 34 | WP694091 | Screw (4) (Replaces: 694091) |
|
$ 6.80 | |||||
| 35 | WP348023 | Hinge & Pin Assembly (2) (Replaces: 348023) |
|
$ 8.39 | |||||
| 37 | 687261 | Wire, Ground |
|
- | |||||
| 38 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 39 | W11613302 | Seal, Door (Replaces: 685763) |
|
$ 50.68 | |||||
| 40 | 279393 | Terminal Block Kit (for Terminal Block) |
|
Immediately | $ 50.09 | ||||
| 41 | 280077 | Door, Rear (Replaces: 695656) |
|
$ 186.71 | |||||
| 42 | 695214 | Door, Front (toast) |
|
- | |||||
| 42 | 689314 | Door, Front (almond) |
|
- | |||||
| 42 | WP348205 | Door, Front (white) (Replaces: 348205) |
|
Immediately | $ 139.28 | ||||
| 42 | 689319 | Door Front (golden Harvest) |
|
- | |||||
| 42 | 695215 | Door, Front (platinum) |
|
- | |||||
| 43 | WP686711 | Handle, Door (toast) (Replaces: 695285) |
|
Immediately | $ 7.52 | ||||
| 43 | WP686711 | Handle, Door (white) (Replaces: 686715) |
|
Immediately | $ 7.52 | ||||
| 43 | 689306 | Handle, Door (almond) |
|
- | |||||
| 43 | 689584 | Handle, Door (golden Harvest) |
|
- | |||||
| 43 | 695286 | Handle, Door (platinum) |
|
- | |||||
| 44 | WP233550 | Foot (4) (Replaces: 233550) |
|
$ 7.52 | |||||
| 45 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 51 | WP489069 | Screw, Hex Washer Head (Replaces: 693994) |
|
Immediately | $ 7.56 | ||||
| 52 | WP90767 | Screw (Replaces: 339527) |
|
Immediately | $ 7.43 | ||||
| 53 | W10854425 | Clip (2) (Replaces: 237823) |
|
Immediately | $ 14.71 | ||||
| 56 | WP98234 | Clip (2) (Replaces: 98234) |
|
Immediately | $ 10.76 | ||||
| 59 | 688193 | Lockwasher |
|
- | |||||
| 60 | 689038 | Switch, Push-to-start |
|
- | |||||
| 62 | 90891 | Nut, Hex |
|
- | |||||
| 63 | 345530 | Ring, Trim |
|
- | |||||
| 64 | 688041 | Nut, Knurled |
|
- | |||||
| 65 | WP688805 | Clip, Control Knob (Replaces: 688805) |
|
Immediately | $ 7.38 | ||||
| 69 | 279304 | Bracket, Terminal (Replaces: 690259) |
|
- | |||||
| 70 | 697291 | Harness, Wiring |
|
- | |||||
| 71 | 279320 | Block, Terminal (Replaces: 690261) |
|
Immediately | $ 61.43 | ||||
| 72 | W11736322 | Cover, Terminal Block (Replaces: 690893) |
|
- | |||||
| 75 | WP681414 | Screw 10-32 X 1/2 (Replaces: 690989) |
|
Immediately | $ 7.62 | ||||
| 76 | W11712577 | Clip, Strain Relief (power Cord) (Replaces: 694415) |
|
Immediately | $ 6.99 | ||||
| 77 | PT220L | Cord, Power (Replaces: 694044) |
|
$ 38.89 | |||||
| 78 | 686769 | Protector, Harness (16``) |
|
- | |||||
| 78 | 686767 | Protector, Harness (7``) |
|
- | |||||
| 79 | 279318 | Terminal, Tinned & Brass (includes Illus. 40) |
|
Immediately | $ 95.44 | ||||
| 80 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 6.80 |
