Diagram for 01 - Compace Ice Maker
01 - Compace Ice Maker


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP627843 Ejector   (Replaces: R0183119) Special Order $ 79.00

2 WP628356 Inlet, Water   (Replaces: R0156627) Special Order $ 48.38

3 D7824706Q Assy, Mold & Heater   (Replaces: R0156669) In-Stock Immediately $ 148.87

4 WP2182124 Stripper, Ice   (Replaces: R0183120) Special Order $ 81.32

5 WP627985 N/a See Notes-thermostat   (Replaces: R0161060) Special Order $ 103.18

6 WP2315522 Retainer   (Replaces: R0191094) Special Order $ 10.44

7 D7824706Q Ice Maker   (Replaces: R0167201) In-Stock Immediately $ 148.87

8 B8391801 Bracket, I/m Appelez-nous -
9 M0211116 Screw, Sm Appelez-nous -
10 D7824601 Harness Special Order $ 57.59

11 WPW10245167 Valve, Water   (Replaces: D7742203) Special Order $ 108.66

12 D7820401 Cover Im Appelez-nous -
13 D7877001 Arm,ice Maker Shut Off Appelez-nous -
14 B8389001 Shim, Top Hinge Appelez-nous -
15 WP2195914 Support   (Replaces: R0183121) Special Order $ 98.82

16 R0186041 Screw Appelez-nous -
17 R0186040 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

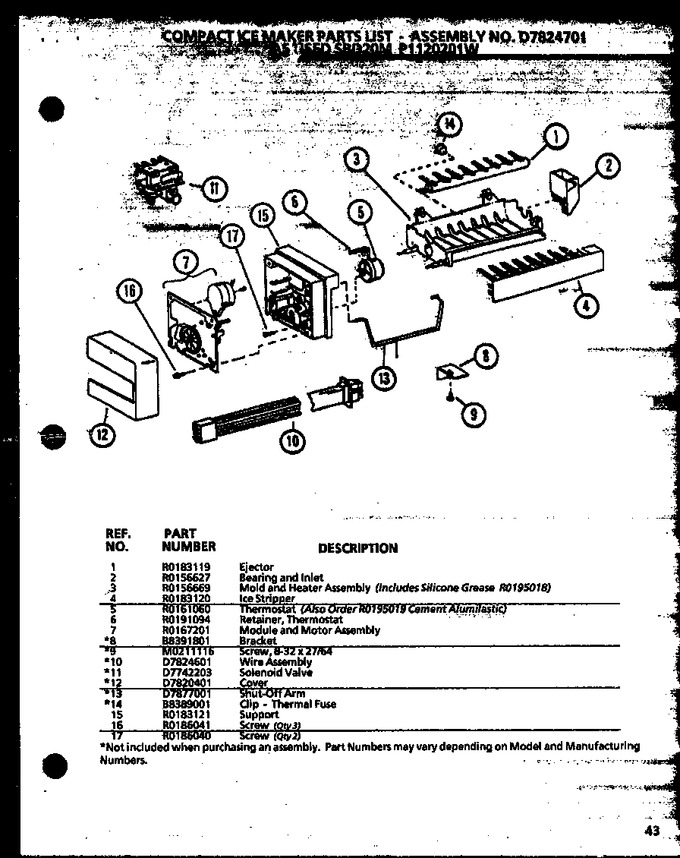

Diagram for SBD20M (BOM: P1120201W)
