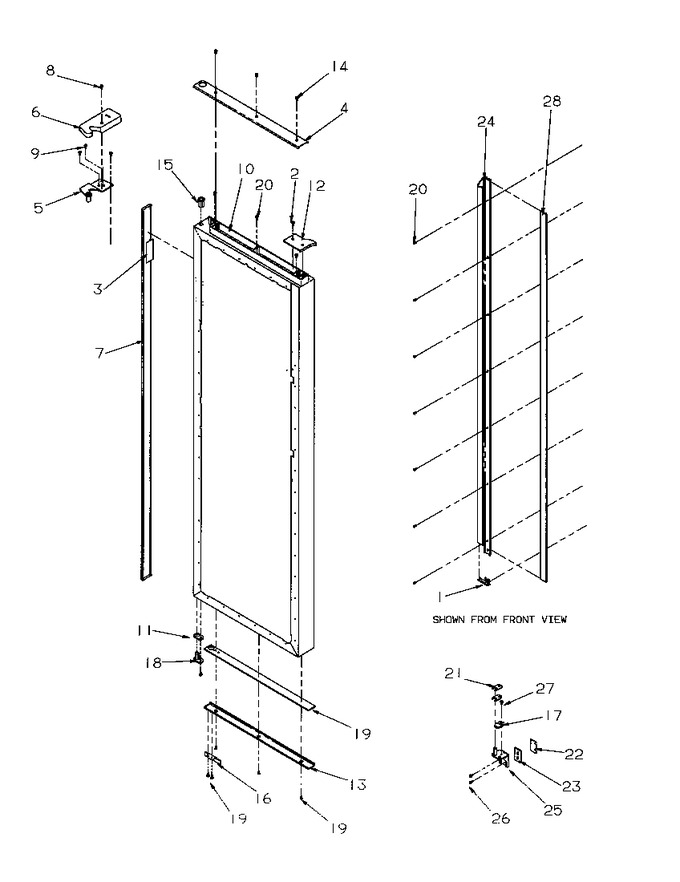

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10871201		Cap, Ref Handle Bot(white)		Appelez-nous	-
2	M0213517		Screw K		Appelez-nous	-
3	R0195042		Double Backed Tape 6ft Roll		Appelez-nous	-
4	10494404		Trim, Refr Dr Top		Appelez-nous	-
5	10495804		Hinge, Top R (e-ct)		Appelez-nous	-
6	10504205		Cover, Hinge		Appelez-nous	-
7	10494510		Trim, Vert		Appelez-nous	-
8	M0202325		Screw		Appelez-nous	-
9	R9800670		Kit, Screw   (Replaces: M0226331)				$ 9.52
10	10979101		Exten. W Ref Door		Appelez-nous	-
11	10361801		Shim, Dr Bushing		Appelez-nous	-
12	10871101		Cap, W Ref Handle Top		Appelez-nous	-
13	10602607		Trim, Ref Dr Bot		Appelez-nous	-
14	M0213815		Screw		Appelez-nous	-
15	10393802		Bushing, Door (wht)		Appelez-nous	-
16	C8972405		Stop-w Door		Appelez-nous	-
17	R0181181		Kit,dr Closure   (Replaces: D7748301)			Immediately	$ 6.80
18	R0181181		Kit,dr Closure   (Replaces: D7751402)			Immediately	$ 6.80
19	10494603		Support Ref Trim (btm)		Appelez-nous	-
20	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.71
21	B8387702		Shim, Door Closure		Appelez-nous	-
21	B8387701		Shim, Door Closure		Appelez-nous	-
22	10860201		Kit, Bot.hinge Shim		Appelez-nous	-
23	10399501		Kit,btm Hinge Shim		Appelez-nous	-
23	10399502		Kit,btm Hinge Shim		Appelez-nous	-
24	10875728		Handle, Ref Dr (white)		Appelez-nous	-
25	10496108		Hinge, Bottom		Appelez-nous	-
26	WP67006715		Screw   (Replaces: M0233847)				$ 6.80
27	W11227370		Screw, Lock Brake Mounting   (Replaces: M0220418)			Immediately	$ 13.42
28	10945933		Insert-w Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
