SBD522VE (BOM: P1320303W E) | The Brick : Appliance Model Lookup

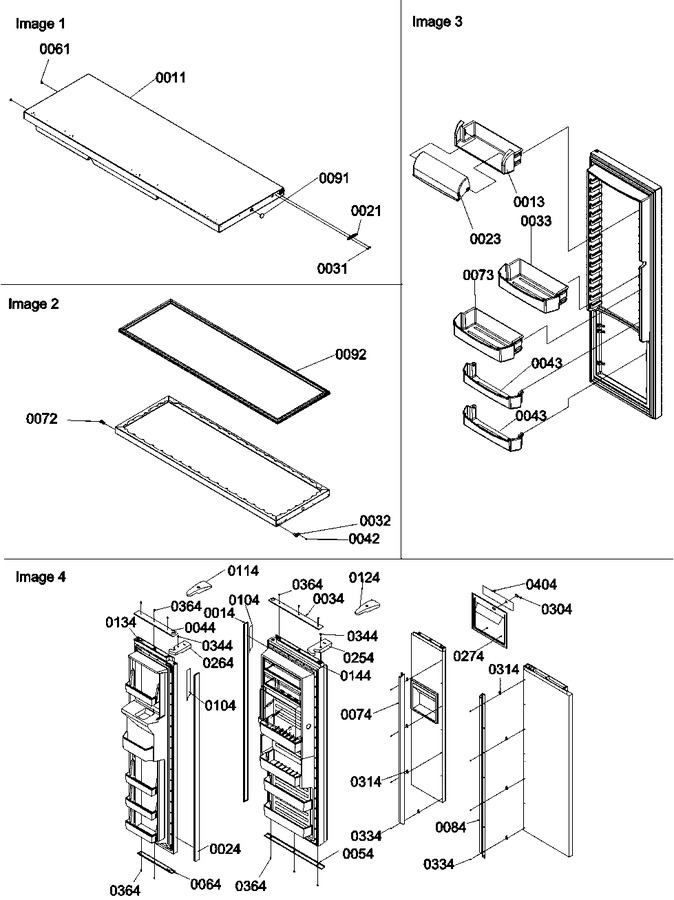

Diagram #	Part Number	Description	Availability	Ships	Price
11	12309703E	Assy, Ref Door (black)	Appelez-nous	-
13	12308603	Frame, Dairy			$ 26.46
14	10494505	Trim, Vertical	Appelez-nous	-
21	C8972407	Stop, Door (blk)	Appelez-nous	-
23	12308701	Door, Dairy	Appelez-nous	-
24	10494506	Trim, Vertical	Appelez-nous	-
31	WP98165	Screw, Sm (Replaces: M0211018)			$ 8.57
32	R0181181	Closure, Door (blk) (Replaces: 12113204)		Immediately	$ 7.55
33	12309510	Bucket, Ref Door	Appelez-nous	-
34	10494418	Trim-ss Ref Dr Top	Appelez-nous	-
42	WP98165	Screw, Sm (Replaces: M0211018)			$ 8.57
43	12311206	Shelf, Ref Door			$ 30.51
44	10494213	Trim-ss Fz Dr Top	Appelez-nous	-
54	10602603	Trim, Refrig Door (bottom)	Appelez-nous	-
61	M0311604	Plug, Button (blk)	Appelez-nous	-
64	10602503	Trim, Frz Dr (bottom) Ss	Appelez-nous	-
72	10961002	Bushing, Door (blk)	Appelez-nous	-
73	12309511	Bucket, Ref Door			$ 39.49
74	12312218	Handle, S Frz Door	Appelez-nous	-
84	12312219	Handle, S Ref Door	Appelez-nous	-
91	A3080001	Plug, Button (blk)	Appelez-nous	-
92	R9800048	Assy,ref Dr Gasket(black)	Appelez-nous	-
104	R0195042	Double Backed Tape 6ft Roll	Appelez-nous	-
114	10504217	Hinge- Cover Lh Gray	Appelez-nous	-
124	10504218	Cover Hinge	Appelez-nous	-
134	10979103	Ext.- E. Ref Dr,black	Appelez-nous	-
144	10979203	Ext, Fz Dr (blk)	Appelez-nous	-
254	12426202	Hinge, Top R (e-ct)	Appelez-nous	-
264	12426203	Hinge, Top L (e-ct)	Appelez-nous	-
274	12314903	Facade, E Dispenser V	Appelez-nous	-
304	12043808	Cap-black Switch	Appelez-nous	-
314	12315101	Clip	Appelez-nous	-
334	WP98165	Screw, Sm (Replaces: M0211018)			$ 8.57
344	M0202325	Screw	Appelez-nous	-
364	W11245710	Screw, Sm (stnls) (Replaces: M0210417)		Immediately	$ 14.75
404	10984646	Insert, Facade (black)	Appelez-nous	-
NI	10722209	Instr-instal (htbk202s)	Appelez-nous	-
NI	12310201	Retainer, Ref Bucket	Appelez-nous	-
