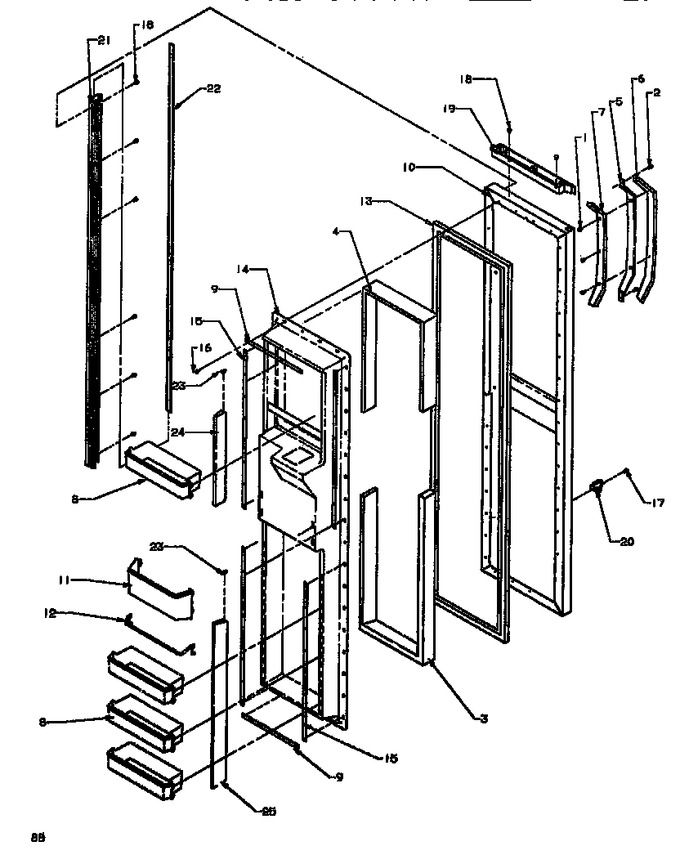

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0215116		Screw		Appelez-nous	-
2	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
3	B0523563		Insulation Ft. K		Appelez-nous	-
4	B0523562		Insul. By The Ft.		Appelez-nous	-
5	D7826605		Handle Door		Appelez-nous	-
6	D7863101		Outer Pad K		Appelez-nous	-
7	D7863001		Inner Pad K		Appelez-nous	-
8	10525504		Shelf, Freezer Door		Appelez-nous	-
9	C8982801		Retainer, Door Liner		Appelez-nous	-
10	10547606W		Ass`y, Frz Door (white) Exp		Appelez-nous	-
11	10534704		Shelf, Half Frz		Appelez-nous	-
12	10237602		Retainer, Package		Appelez-nous	-
13	10359702		Gasket (w Frz Dr)		Appelez-nous	-
14	10533601		Liner, Frz. Dr I/w		Appelez-nous	-
15	D7828601		Retainer, Door Liner		Appelez-nous	-
16	M0219730		Screw				$ 7.65
23	10063102		Clip, Door Dike		Appelez-nous	-
24	10063202		Rem Dike I & W Upper		Appelez-nous	-
25	10063204		Removable Dike I & W		Appelez-nous	-
