SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Drain System, Rollers, And Evap Assy

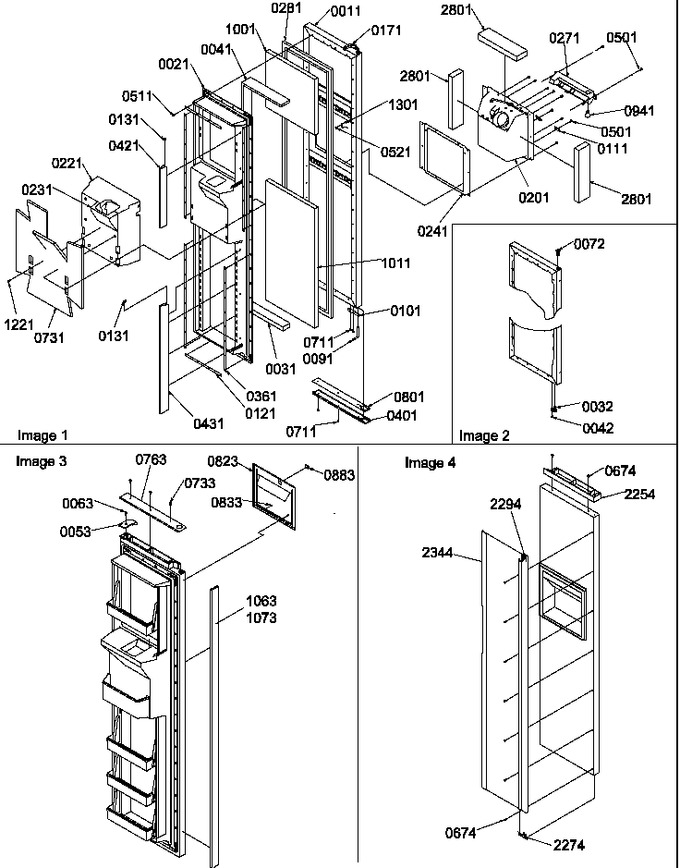

04 - Fz Door


05 - Fz Shelves And Light


06 - Ice & Water Cav/elec Brkt & Toe Grille


07 - Ice Bucket Auger And Ice Maker Parts


08 - Ice Maker/control Assy


09 - Machine Compartment


10 - Ref Door


11 - Ref/fz Shelves, Light, And Hinges


12 - Shelves, Deli, And Crisper Assemblies


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881206W		Ass`y, Frz Door(white)		Appelez-nous	-
21	10860801		Liner, Frz Dr I/w		Appelez-nous	-
31	B0523563		Insulation Ft. K		Appelez-nous	-
32	R0181181		Closure-w Door   (Replaces: 12113201)			Immediately	$ 7.55
41	B0523562		Insul. By The Ft.		Appelez-nous	-
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
53	10871112		Cap-gy Fz Hndl Top		Appelez-nous	-
63	M0213517		Screw K		Appelez-nous	-
72	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 8.20
91	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
101	C8972403		Stop, Door (blk)		Appelez-nous	-
111	C8992901		Clip		Appelez-nous	-
121	C8982801		Retainer, Door Liner		Appelez-nous	-
131	10063102		Clip, Door Dike		Appelez-nous	-
171	12053601		Harness Frz Dr		Appelez-nous	-
201	Y00000000		See Note Gy Cavity Assy -- (for Parts Breakdown See Pages 10 & 11 Image 1)		Appelez-nous	-
221	10895401		Insul., I/w Cavity		Appelez-nous	-
231	10895501		Insul, Ice Chute		Appelez-nous	-
241	D7791003		Gasket Cavity		Appelez-nous	-
271	Y00000000		See Note Elec Brkt Assy -- (for Parts Breakdown See Pages 10 & 11 Image 2)		Appelez-nous	-
281	10359702		Gasket (w Frz Dr)		Appelez-nous	-
361	D7828601		Retainer, Door Liner		Appelez-nous	-
401	10602503		Trim, Frz Dr (bottom) Ss		Appelez-nous	-
421	10063207		Dike, I & W		Appelez-nous	-
431	10063208		Dike, I & W		Appelez-nous	-
501	M0216517		Screw		Appelez-nous	-
511	M0219730		Screw				$ 7.65
521	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30
674	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
711	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
731	10941501		Insul, Batt		Appelez-nous	-
733	M0213815		Screw		Appelez-nous	-
763	10494208		Trim-fz Dr Top		Appelez-nous	-
801	10494604		Support, Fz Trim		Appelez-nous	-
823	10986108		Facade, Gy Disp.		Appelez-nous	-
833	M0217701		Screw		Appelez-nous	-
883	12036404		Cap-switch Gy		Appelez-nous	-
941	M0360401		Light Bulb (220/250) 6 Watt		Appelez-nous	-
1001	12016901		Insul, Batt (ref. Door)		Appelez-nous	-
1011	12016902		Insul, Batt (ref. Door)		Appelez-nous	-
1063	10494506		Trim, Vertical		Appelez-nous	-
1073	R0195042		Double Backed Tape 6ft Roll		Appelez-nous	-
1221	M0311601		Plug, Button		Appelez-nous	-
1301	M0272803		Lock Washer		Appelez-nous	-
2254	10979201		Ext, Fz Dr (wht)		Appelez-nous	-
2274	10871212		Cap-gy Fz Hndl Bot		Appelez-nous	-
2294	12106226		Handle, Frz Door (stn)		Appelez-nous	-
2344	10945940		Insert, Stn Handle		Appelez-nous	-
2801	B0523596		Insul. By The Ft.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
