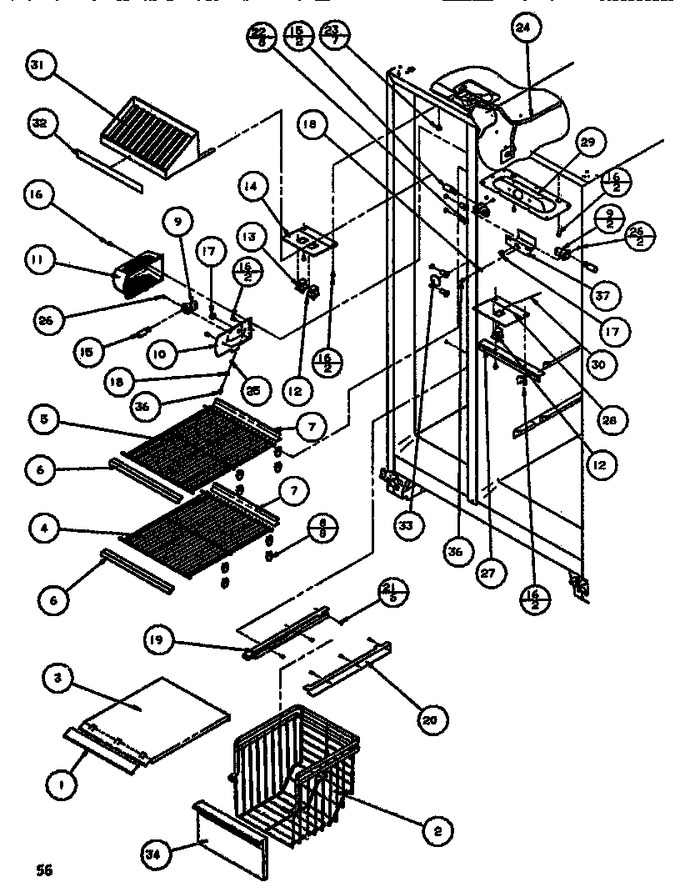

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7616625 | Trim |
|
- | |||||
| 2 | D7820802 | Basket, Frz |
|
- | |||||
| 3 | D7781506 | Freezer Shelf Pnt |
|
- | |||||
| 4 | D7788310 | Shelf, Frz |
|
- | |||||
| 5 | D7788311 | Shelf, Freezer |
|
- | |||||
| 6 | C8913519 | Trim |
|
- | |||||
| 7 | C8913609 | Trim |
|
- | |||||
| 8 | C8973801 | Support, Frz Shelf |
|
$ 8.35 | |||||
| 9 | D7845101 | Socket, Lamp |
|
- | |||||
| 11 | D7786601 | Shield, Frz Light |
|
- | |||||
| 12 | W11384469 | Switch, Light (Replaces: C3680308) |
|
Immediately | $ 35.18 | ||||
| 13 | 18805 | Switch (Replaces: C3680309) |
|
$ 16.75 | |||||
| 14 | D7749001 | Cover Light |
|
- | |||||
| 15 | M0360402 | Light Bulb (230/240 Vac) |
|
- | |||||
| 16 | 67006425 | Screw (Replaces: M0230917) |
|
Immediately | $ 6.57 | ||||
| 17 | A4554813 | Snap Bushing |
|
- | |||||
| 18 | M0320905 | Terminal Ground A |
|
- | |||||
| 19 | D7849901 | Driver |
|
- | |||||
| 20 | D7849902 | Glide, Freezer Rh |
|
- | |||||
| 21 | M0213529 | Screw |
|
- | |||||
| 23 | M0580007 | Grommet, Screw |
|
- | |||||
| 24 | D7840701 | Harness, Outer Lnr. |
|
- | |||||
| 25 | M0272803 | Lock Washer |
|
- | |||||
| 26 | M0217225 | Screw |
|
- | |||||
| 27 | D7288112 | Shield, Light |
|
- | |||||
| 28 | D7297602 | Cover, Light Sw |
|
- | |||||
| 29 | D7716403 | Housing-ref Light |
|
- | |||||
| 30 | D7383427 | Jumper Wire |
|
- | |||||
| 32 | C8986107 | Insert, Juice Rack |
|
- | |||||
| 33 | A3069103 | Plug |
|
- | |||||
| 34 | D7820705 | Front Basket |
|
- | |||||
| 36 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.74 | |||||
| 37 | D7844801 | Shield, Socket |
|
- |
