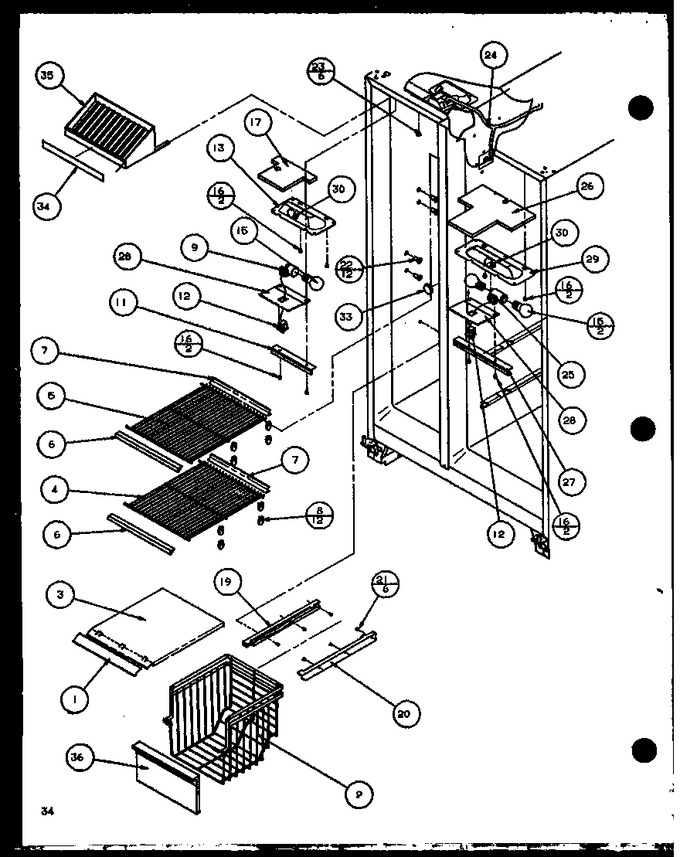

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7616625		Trim		Appelez-nous	-
2	D7820802		Basket, Frz		Appelez-nous	-
3	D7781506		Freezer Shelf Pnt		Appelez-nous	-
4	D7788310		Shelf, Frz		Appelez-nous	-
5	D7788309		Shelf, Frz		Appelez-nous	-
6	C8913519		Trim		Appelez-nous	-
7	C8913609		Trim		Appelez-nous	-
8	C8973801		Support, Frz Shelf				$ 8.35
9	C8973401		Socket-light		Appelez-nous	-
11	10014707		Shield, Light		Appelez-nous	-
12	W11384469		Switch   (Replaces: C3680304)			Immediately	$ 35.18
13	D7760101		Housing, Fz Light		Appelez-nous	-
15	316538904		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 20.48
16	67006425		Screw   (Replaces: M0230917)			Immediately	$ 6.57
17	C8976301		Barrier		Appelez-nous	-
19	D7839901		Glide, Frezer. L.h.		Appelez-nous	-
20	D7839902		Glide, Fz, R.h.		Appelez-nous	-
21	M0213529		Screw		Appelez-nous	-
22	C8973701		Plug, Frz Shelf Support		Appelez-nous	-
23	M0580007		Grommet, Screw		Appelez-nous	-
24	D7771301		Harness, Outer Liner		Appelez-nous	-
25	D7808602		Socket, Dual Lamp		Appelez-nous	-
26	C8778301		Insulation		Appelez-nous	-
27	10014708		Shield, Light		Appelez-nous	-
28	D7297602		Cover, Light Sw		Appelez-nous	-
29	D7716403		Housing-ref Light		Appelez-nous	-
30	B5733302		Clip, Ground		Appelez-nous	-
33	A3069103		Plug		Appelez-nous	-
34	C8986105		Insert, Juice Rack		Appelez-nous	-
35	D7839701		Rack, Juice V		Appelez-nous	-
36	D7820704		Front Basket		Appelez-nous	-
