Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 C8987105 Seal, Door Dike Appelez-nous -
2 M0219730 Screw Special Order $ 7.65

3 B0523562 Insul. By The Ft. Appelez-nous -
4 D7828601 Retainer, Door Liner Appelez-nous -
5 B5629043 Insulation Appelez-nous -
6 B5629044 Insulation Appelez-nous -
7 C8982801 Retainer, Door Liner Appelez-nous -
8 D7834042 Door Frz-w Appelez-nous -
9 D7827308 Shelf, Frz Door Appelez-nous -
10 D7800408 Foam Slab Door Appelez-nous -
11 D7870904 Gasket (w Frz Dr) Appelez-nous -
12 D7829503 Inner Door Panel Appelez-nous -
13 10175702 Retainer Appelez-nous -
14 10063206 Rem Dike I & W Lower Appelez-nous -
15 10063101 Clip, Door Dike Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

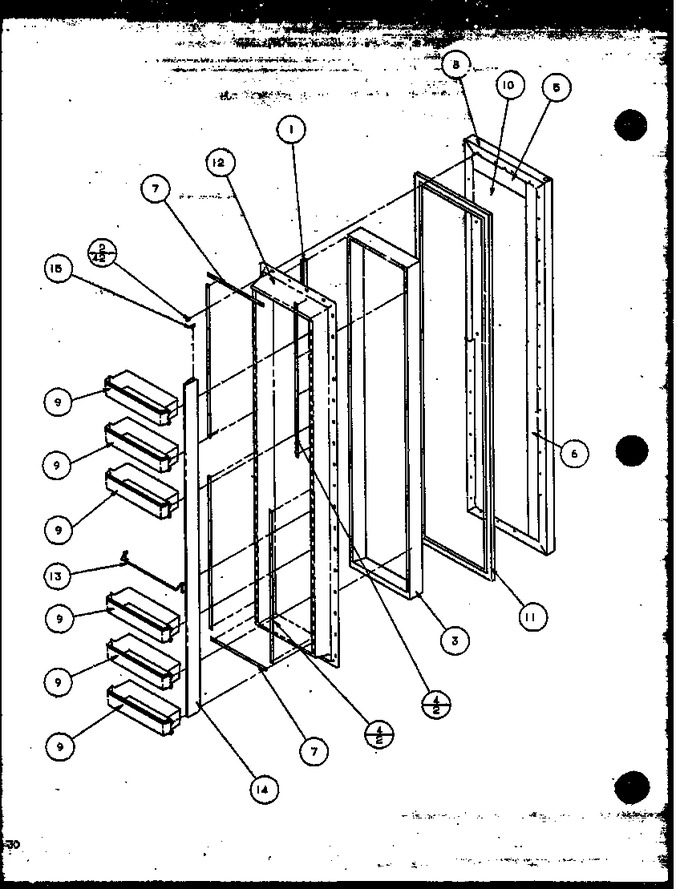

Diagram for SBI20K (BOM: P1117802W)
