Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10860201 Kit, Bot.hinge Shim Appelez-nous -
2 WP8281196 Screw, Mach   (Replaces: M0202336) In-Stock Immediately $ 6.80

3 10875733 Handle-e Fz Dr Appelez-nous -
5 R9800670 Screw, Mounting   (Replaces: M0223230) Special Order $ 9.52

6 10393803 Bushing, Door (blk) Appelez-nous -
7 W11227370 Screw, Lock Brake Mounting   (Replaces: M0220418) In-Stock Immediately $ 13.42

8 C8972403 Stop, Door (blk) Appelez-nous -
9 R0181181 Kit,dr Closure   (Replaces: D7751404) In-Stock Immediately $ 6.80

14 WP67006715 Screw   (Replaces: M0233847) Special Order $ 6.80

16 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.59

17 67006425 Screw, Sm   (Replaces: M0211019) In-Stock Immediately $ 6.57

18 10495806 Hinge, Top L (e-ct) Appelez-nous -
19 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 9.52

20 B8389001 Shim, Top Hinge Appelez-nous -
21 B8387703 Shim, Door Closure Appelez-nous -
22 10504204 Cover, Hinge(rh) Appelez-nous -
23 R0181181 Kit,dr Closure   (Replaces: D7748302) In-Stock Immediately $ 6.80

24 10496104 Kit,hinge Lh Btm(b) Appelez-nous -
25 10399501 Kit,btm Hinge Shim Appelez-nous -
25 10399502 Kit,btm Hinge Shim Appelez-nous -
26 10871206 Cap- E Fz Hndl Bot. Appelez-nous -
27 10871106 Cap-e Fz Hndl Top Appelez-nous -
28 10979203 Ext, Fz Dr (blk) Appelez-nous -
29 10881002 Grommet-screw, E Appelez-nous -
30 10945935 Insert-e Handle Appelez-nous -
31 10494604 Support, Fz Trim Appelez-nous -
32 10494508 Trim, Vertical (black) Appelez-nous -
33 10494206 Trim-e Fz Dr Top Appelez-nous -
34 10602505 Trim, Frz Door (bottom) Appelez-nous -
NOTE: R134a Refrigerant System: This Refrigerant System Incorporates R134a Refrigerant And Approved Svc Techniques And Equipment Should Be Applied If Sealed System Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

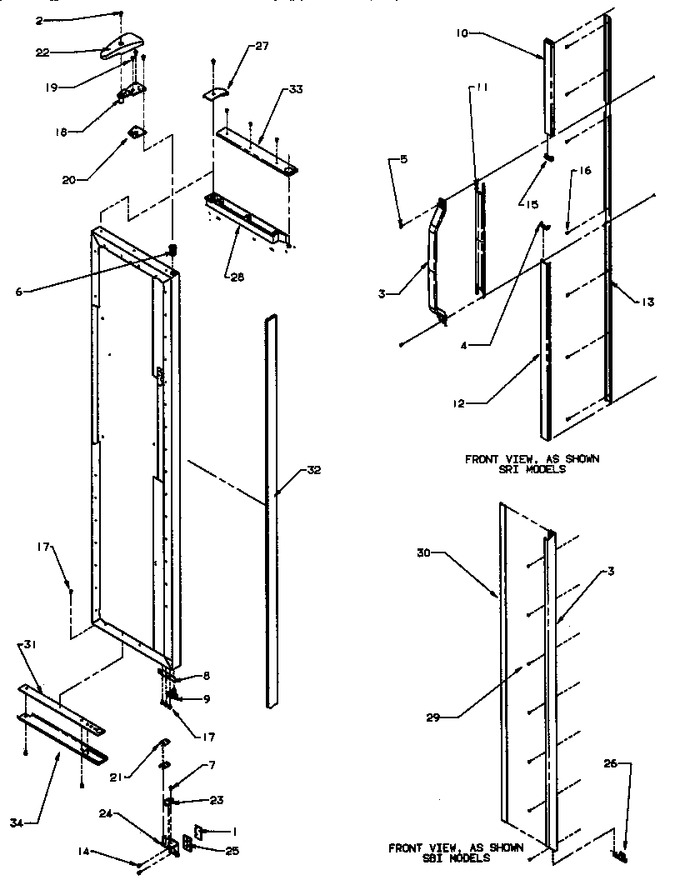

Diagram for SBI20S2E (BOM: P1190701W E)
