SELECT A DIAGRAM

02 - Console


04 - Cabinet, Base, Top, Lid


05 - Outer Tub, Inner Tub, Sub Top, Agit


06 - Pump, Hoses, Water Valve


07 - Motor, Pulleys, Belt, Springs


08 - Mechanism


09 - Accessories & Functional Parts

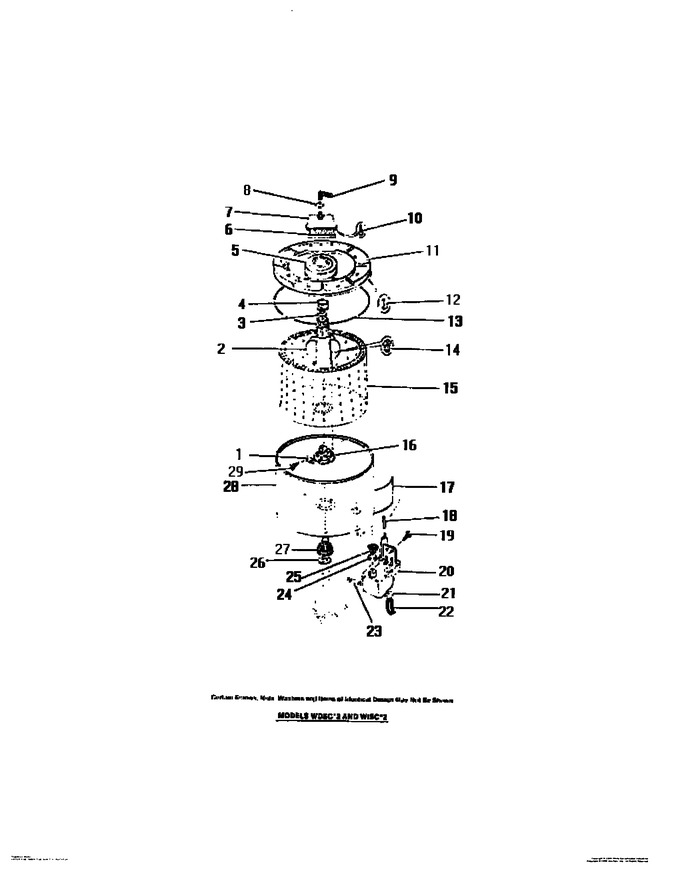

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8002373		Plate-lock		Appelez-nous	-
2	8002424		Agitator		Appelez-nous	-
3	8002427		Washer		Appelez-nous	-
4	8006677		Cap Includes Washer		Appelez-nous	-
5	8004157		Dispenser-fabric Softener (optional)		Appelez-nous	-
6	8002435		Filter-lint		Appelez-nous	-
7	8011313		Housing		Appelez-nous	-
8	8002354		Clamp		Appelez-nous	-
9	8002353		Hose-pump To Lint Filter		Appelez-nous	-
10	8002432		Screws (5)		Appelez-nous	-
11	8011314		Sub-tub				$ 10.28
12	8002429		Clips (10)		Appelez-nous	-
13	8002430		Seal		Appelez-nous	-
14	8002426		Screws (5)		Appelez-nous	-
15	8011266		Tub-inner		Appelez-nous	-
16	8002372		Support - Tub		Appelez-nous	-
17	8011275		Shield		Appelez-nous	-
18	8011257		Hose-pressure Fill		Appelez-nous	-
19	8011280		Screws (2)		Appelez-nous	-
20	8002366		Trap - Button/drain		Appelez-nous	-
21	8002365		Clamp		Appelez-nous	-
22	8002364		Hose-trap To Pump		Appelez-nous	-
23	8011303		Nut		Appelez-nous	-
24	8002367		Clamp		Appelez-nous	-
25	8006674		Grommet		Appelez-nous	-
26	8002401		Washer-thrust		Appelez-nous	-
27	8011284		Bearing-tub Support		Appelez-nous	-
28	8002371		Tub-outer		Appelez-nous	-
29	8002374		Screws (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
