SELECT A DIAGRAM

01 - Cabinet Parts

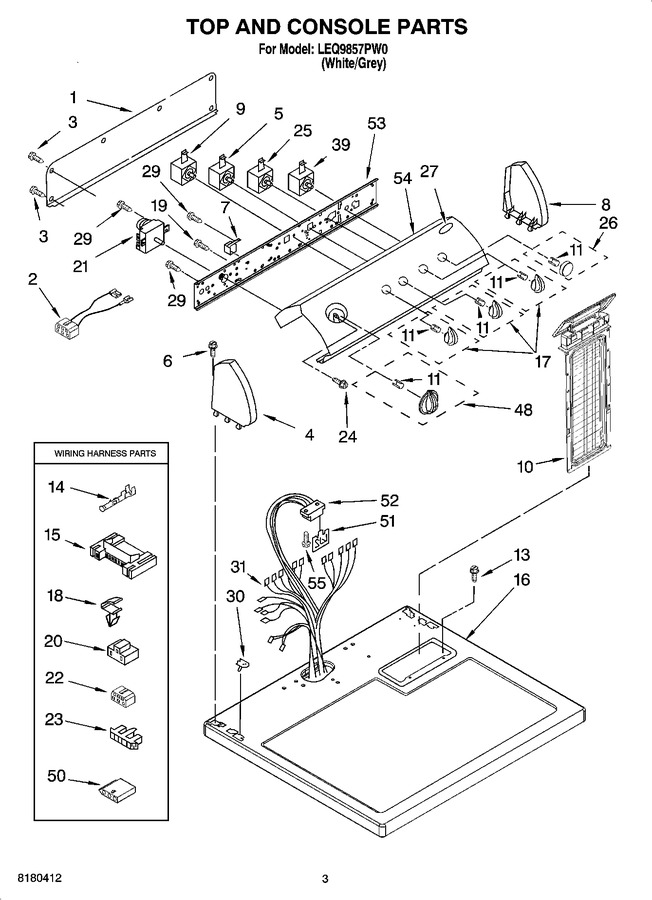

02 - Top And Console Parts


03 - Bulkhead Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 121.78
2	3401695		Wire, Jumper (buzzer On/off)		Appelez-nous	-
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.80
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	3405154		Switch, Wrinkle Shield				$ 144.47
6	WP388326		Screw, Console   (Replaces: 388326)				$ 8.36
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	8528330		Switch, Temperature				$ 211.41
10	W11778253		Screen, Lint   (Replaces: 8557857)			Immediately	$ 49.17
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
14	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.25
15	3395683		Connector (motor)			Immediately	$ 49.01
16	8557930		Top		Appelez-nous	-
17	8544937		Knob, Control (3)				$ 24.98
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.36
19	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.43
20	3401144		Connector, (pts Relay)				$ 11.53
21	WP3406725		Timer, 60 Hz.   (Replaces: 3406725)				$ 348.31
22	3347243		Connector 6-circuit		Appelez-nous	-
23	3397269		Connector, Timer				$ 25.55
24	3400859		Screw, Grounding   (Replaces: 8533951)				$ 12.49
25	3405152		Switch, End Of Cycle				$ 117.96
26	WP8544941		Knob, Push-to-start   (Replaces: 8544941)				$ 91.46
27	3400985		Medallion		Appelez-nous	-
29	WPW10139210		Screw, Mounting (8-18 X 5/16)   (Replaces: 3390646)				$ 7.23
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 6.98
31	8299889		Harness, Wiring		Appelez-nous	-
39	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 116.45
48	8544957		Timer Knob Assembly				$ 41.86
50	3936144		Connector				$ 19.10
51	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 296.94
52	3391885		Connector, Edge				$ 81.65
53	8544895		Bracket, Control		Appelez-nous	-
54	8545992		Panel, Control (includes Illus. 27)		Appelez-nous	-
55	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
55	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
55	W11224254		Kit, Dryer Vent Testng   (Replaces: 8522199)			Immediately	$ 11.11
55	3406839		Dry Rack			Immediately	$ 59.11
55	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
55	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
55	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 13.28
55	N/A		Accessory Parts		Appelez-nous	-
55	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 60.01

    View Diagram in Separate Window       Print Part List
