SELECT A DIAGRAM

01 - Cabinet Parts

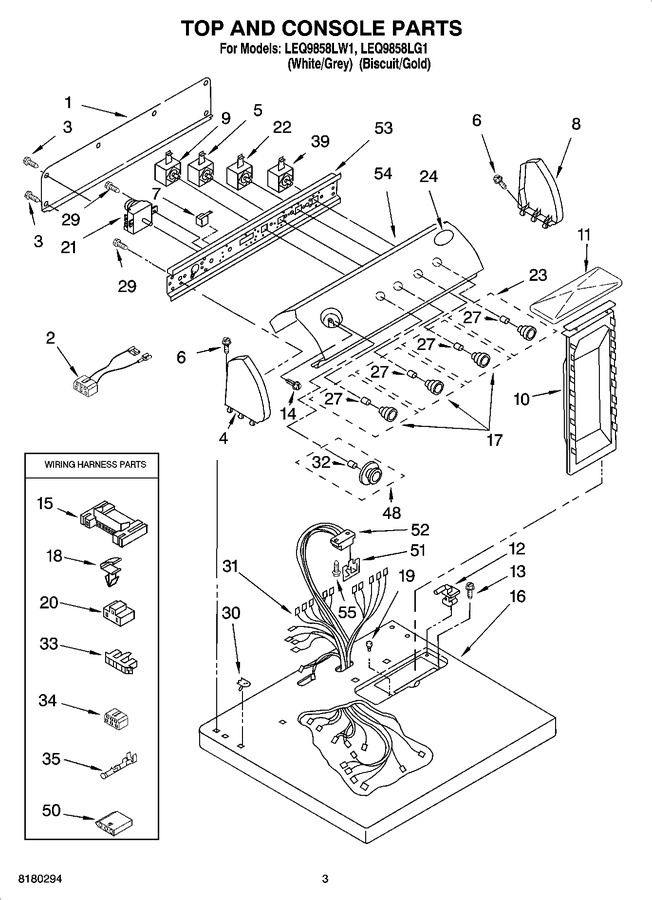

02 - Top And Console Parts Optional Parts (not Included)


03 - Bulkhead Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 121.78
2	3401695		Wire, Jumper (buzzer On/off)		Appelez-nous	-
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.80
4	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
4	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
5	3405154		Switch, Wrinkle Shield				$ 144.47
6	WP388326		Screw, Console   (Replaces: 388326)				$ 8.36
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
8	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
8	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
9	8528330		Switch, Temperature				$ 211.41
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 41.46
11	8283378		Cover, Lint Screen (white)				$ 44.80
11	8283380		Cover, Lint Screen (biscuit)		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.30
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.30
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
14	3400859		Screw, Grounding				$ 12.49
15	3395683		Connector (motor)			Immediately	$ 49.01
16	8271390		Top (white)		Appelez-nous	-
16	8271392		Top (biscuit)		Appelez-nous	-
17	8538958		Knob, Control (3) (gold)		Appelez-nous	-
17	WP8538957		Knob, Control (3) (grey)   (Replaces: 8538957)				$ 52.68
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.36
19	297535		Bumper, Lint Lid		Appelez-nous	-
20	3401144		Connector, (pts Relay)				$ 11.53
21	WP3406725		Timer, 60 Hz.   (Replaces: 3406725)				$ 348.31
22	3405152		Switch, End Of Cycle				$ 117.96
23	8538959		Knob, Push-to-start (grey)				$ 25.38
23	8538960		Knob, Push-to-start (gold)		Appelez-nous	-
24	3955775		Medallion		Appelez-nous	-
27	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
29	WPW10139210		Screw, Mounting (8-18 X 5/16)   (Replaces: 3390646)				$ 7.23
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 6.98
31	8299889		Harness, Wiring		Appelez-nous	-
32	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.38
33	3397269		Connector, Timer				$ 25.55
34	3347243		Connector 6-circuit		Appelez-nous	-
35	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.25
39	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 116.45
48	WP8557455		Timer Knob Assembly (grey)   (Replaces: 8538953)				$ 53.65
48	8538954		Timer Knob Assembly (gold)		Appelez-nous	-
50	3936144		Connector				$ 19.10
51	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 296.94
52	3391885		Connector, Edge				$ 81.65
53	8271418		Bracket, Control				$ 57.15
54	8532631		Panel, Control (includes Illus. 24) (grey)		Appelez-nous	-
54	8532632		Panel, Control (includes Illus. 24) (gold)		Appelez-nous	-
55	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
55	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
55	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
55	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
55	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)			Immediately	$ 11.11
55	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 24.99
55	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
55	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
55	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
55	N/A		Accessory Parts		Appelez-nous	-
55	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 60.01
55	3406839		Dry Rack			Immediately	$ 59.11

    View Diagram in Separate Window       Print Part List
