Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7792004 Handle Assy, Gold Appelez-nous -
1 D7792003 Handle Assy, White Appelez-nous -
1 D7792005 Handle Assy Almond K Appelez-nous -
2 D7792103 Handle Assy, White Appelez-nous -
2 D7792104 Handle Assy, Gold Appelez-nous -
2 D7792105 Handle Assy Almond K Appelez-nous -
3 D7826601 Handle Appelez-nous -
4 M0215115 Screw Appelez-nous -
5 WP3400094 Screw   (Replaces: M0253942) Special Order $ 8.33

6 C8965901 Bushing, Top Appelez-nous -
7 C8972402 Stop, Door Appelez-nous -
8 R0181181 Kit,dr Closure   (Replaces: D7751402) In-Stock Immediately $ 6.80

9 D7852105 Upper Trim Frz Dr (l) Appelez-nous -
9 D7852104 Upper Trim Frz Dr Appelez-nous -
9 D7852103 Upper Trim Frz Dr (w) Appelez-nous -
10 D7792503 Trim Center Frz Appelez-nous -
10 D7792505 Trim Center Frz Appelez-nous -
10 D7792504 Center Trim, Fz Door, Gold Appelez-nous -
11 D7792703 Trim, Lwr Frz Door (w) Appelez-nous -
11 D7792705 Trim, Lwr Frz Door (l) Appelez-nous -
11 D7792704 Trim, Lwr Frz Door Appelez-nous -
12 D7792902 Frz Trim, Retainer Appelez-nous -
13 D7837401 Support, Handle Appelez-nous -
14 M0213815 Screw Appelez-nous -
15 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.59

16 D7790801 Nut, Door Stop Appelez-nous -
17 M0219717 Screw Appelez-nous -
18 D7757803 Top Hinge Assy Appelez-nous -
19 R9800670 Kit, Screw   (Replaces: M0257244) Special Order $ 9.52

20 B8389001 Shim, Top Hinge Appelez-nous -
21 B8386701 Kit,btm Hinge Shim Appelez-nous -
21 B8386703 Kit,btm Hinge Shim Appelez-nous -
21 B8386702 Kit,btm Hinge Shim Appelez-nous -
22 R0181181 Kit,dr Closure   (Replaces: D7748301) In-Stock Immediately $ 6.80

23 D7757703 Hinge Assy Appelez-nous -
24 WPW10068250 Screw   (Replaces: M0202530) Special Order $ 3.84

25 M0246258 Screw Appelez-nous -
26 B8387701 Shim, Door Closure Appelez-nous -
26 B8387702 Shim, Door Closure Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

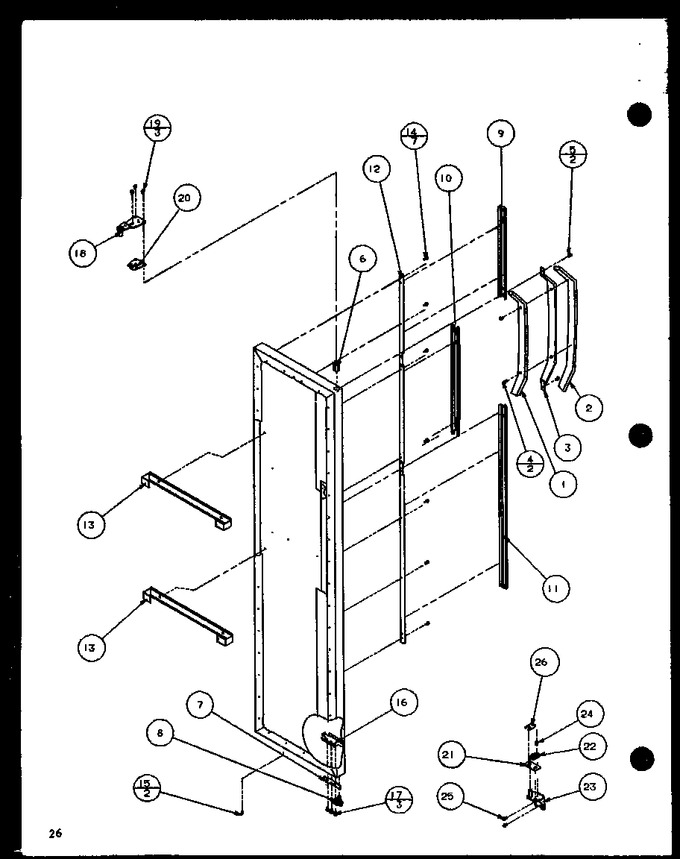

Diagram for SC25H (BOM: P7836004W)
