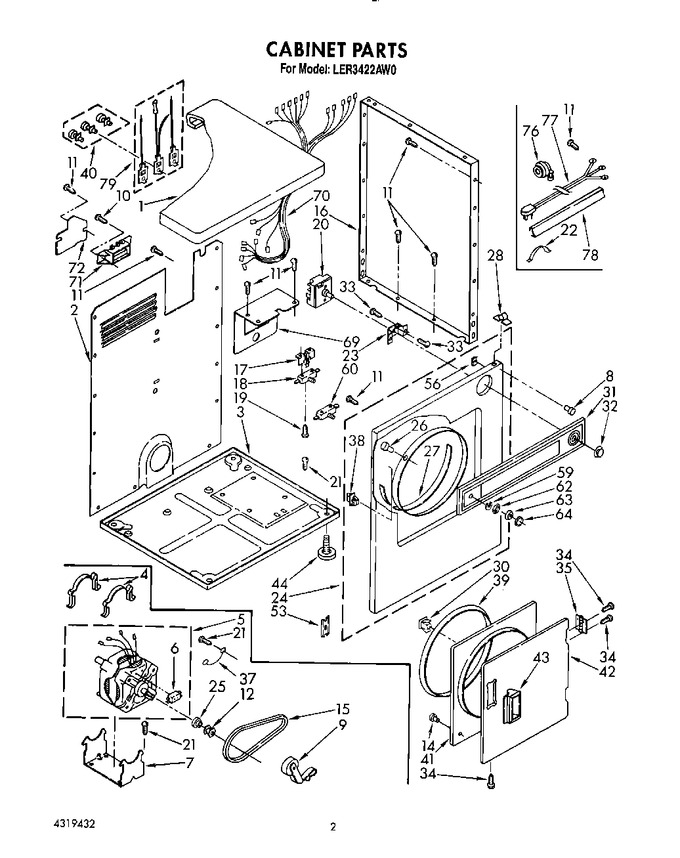

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4319405		Top (almond)		Appelez-nous	-
1	345703		Top (white)   (Replaces: 4319377)				$ 235.42
2	4319396		Panel, Rear (240 Volt)		Appelez-nous	-
3	WP348726		Base Assembly   (Replaces: 4319418)				$ 262.94
4	WP660658		Clip, Motor (2)   (Replaces: 4319313)				$ 7.40
5	279827		Motor, 60 Hz.   (Replaces: 3391887)			Immediately	$ 195.48
6	279827		Switch (use W/3391887 Motor)   (Replaces: 3388235)			Immediately	$ 195.48
7	696541		Base, Motor				$ 88.07
8	307563		Rivet, Plastic (4)		Appelez-nous	-
9	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 20.22
10	WP489069		Screw (2) (8 X 1/2 Ab)   (Replaces: 776076)			Immediately	$ 7.56
11	WP681414		Screw, 10-32 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
12	W10837625		Pulley 60 Hz   (Replaces: 3389729)			Immediately	$ 11.49
14	238614		Bumper				$ 76.31
15	3394652		Belt, Drive			Immediately	$ 47.09
16	4319406		Panel, Side (almond)		Appelez-nous	-
16	4319382		Panel, Side (white)		Appelez-nous	-
17	WP691581		Clip, Door Switch   (Replaces: 295998)			Immediately	$ 7.64
18	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 27.45
19	WP98129		Screw, 6-20 X 1-3/8 (2)   (Replaces: 98129)				$ 7.36
20	690621		Timer, 60 Hz.		Appelez-nous	-
21	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.43
22	WP98997		Clip   (Replaces: 98997)				$ 10.48
23	348171		Bracket, Timer   (Replaces: 4319376)		Appelez-nous	-
24	4319408		Front Panel Assembly (xalmond)		Appelez-nous	-
24	280044		Front Panel Assembly (xwhite)   (Replaces: 4319385)				$ 301.64
25	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 125.17
26	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 21.20
27	279264		Seal & Bearing Assembly   (Replaces: 349462)			Immediately	$ 76.91
28	WP345670		Lock, Top (2)   (Replaces: 345670)			Immediately	$ 7.28
30	WP3389441		Catch, Door   (Replaces: 3389441)			Immediately	$ 6.56
31	9830470		Panel, Control (almond)		Appelez-nous	-
31	9830469		Panel, Control (white)		Appelez-nous	-
32	9830452		Knob Assembly (almond)		Appelez-nous	-
32	9830451		Knob Assembly (white)		Appelez-nous	-
33	W11808444		Screw, 8-32 X 5/16 (2)   (Replaces: 98139)		Appelez-nous	-
34	WP694091		Screw (4)   (Replaces: 694091)				$ 6.80
35	WP348023		Hinge & Pin Assembly (2)   (Replaces: 4319328)				$ 8.39
37	4319390		Wire, Ground		Appelez-nous	-
38	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.00
39	W11613302		Seal, Door   (Replaces: 685763)				$ 50.68
40	279393		Terminal Block Kit (for Terminal Block)			Immediately	$ 50.09
41	4319442		Door, Rear		Appelez-nous	-
42	4319333		Door, Front (almond)		Appelez-nous	-
42	4319327		Door, Front (white)		Appelez-nous	-
43	4319334		Handle, Door (almond)		Appelez-nous	-
43	WP3405184		Handle, Door (white)   (Replaces: 4319329)				$ 71.83
44	WP233550		Foot (4)   (Replaces: 233550)				$ 7.52
53	W10854425		Clip (2)   (Replaces: 3394083)			Immediately	$ 14.71
56	WP98234		Clip (2)   (Replaces: 98234)			Immediately	$ 10.76
59	688193		Lockwasher		Appelez-nous	-
60	689038		Switch, Push-to-start		Appelez-nous	-
62	90891		Nut, Hex		Appelez-nous	-
63	345530		Ring, Trim		Appelez-nous	-
64	688041		Nut, Knurled		Appelez-nous	-
69	279304		Bracket, Terminal   (Replaces: 690259)		Appelez-nous	-
70	4319417		Harness, Wiring		Appelez-nous	-
71	279320		Block, Terminal   (Replaces: 690261)			Immediately	$ 61.43
72	W11736322		Cover, Terminal Block   (Replaces: 4319465)		Appelez-nous	-
76	W11712577		Clip, Strain Relief (power Cord)   (Replaces: 694415)			Immediately	$ 6.99
77	PT220L		Cord, Power   (Replaces: 3389955)				$ 38.89
78	686769		Protector, Harness		Appelez-nous	-
79	279318		Terminal, Tinned & Brass (includes Illus. 40)			Immediately	$ 95.44
