SELECT A DIAGRAM

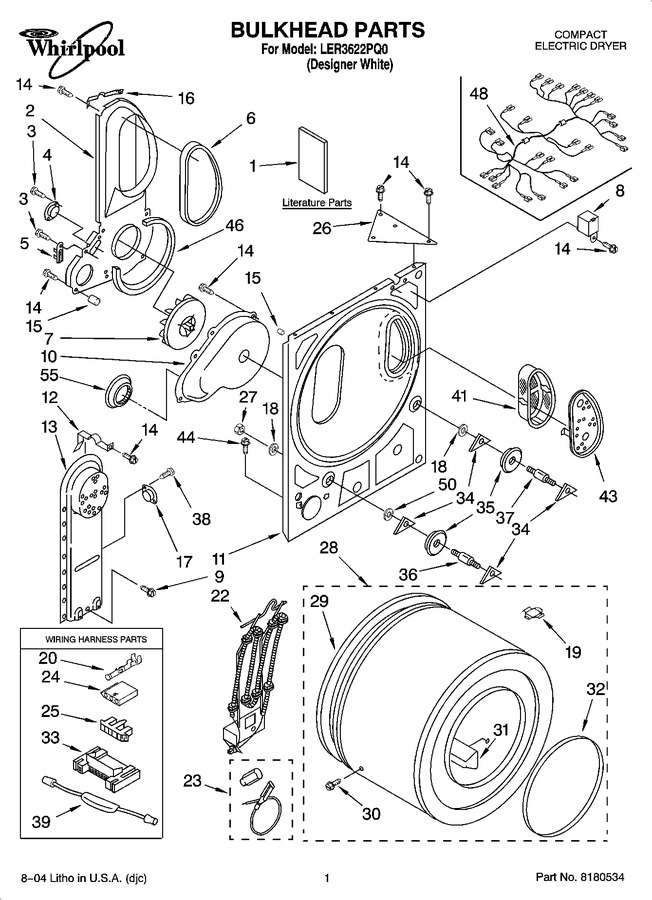

01 - Bulkhead Parts
02 - Cabinet Parts
03 - Top And Console Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8562114 | Use & Care Guide |
|
- | |||||
| 1 | 9830513 | Label, Operating Instructions |
|
- | |||||
| 1 | 9831749 | Label, Wiring Diagram |
|
- | |||||
| 2 | 696545 | Air Duct Assembly |
|
- | |||||
| 3 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 7.23 | |||||
| 4 | WP3398128 | Thermostat, Internal Bias (Replaces: 3398128) |
|
Immediately | $ 125.36 | ||||
| 5 | WP3399849 | Fuse, Thermal (Replaces: 3399849) |
|
Immediately | $ 32.42 | ||||
| 6 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.15 | ||||
| 7 | WP696426 | Wheel, Blower (Replaces: 696426) |
|
Immediately | $ 123.02 | ||||
| 8 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 120.65 | |||||
| 9 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 7.43 | |||||
| 10 | 696419 | Scroll, Fan |
|
$ 129.29 | |||||
| 11 | 279848 | Bulkhead (Replaces: 695931) |
|
$ 328.30 | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 13.55 | |||||
| 13 | WP3401380 | Box, Heater (Replaces: 3401380) |
|
Immediately | $ 265.73 | ||||
| 14 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 15 | W10491983 | Cap, Screw (Replaces: 359702) |
|
- | |||||
| 16 | 345396 | Clip (Replaces: 9830393) |
|
- | |||||
| 17 | WP3404154 | Thermostat, 200~f (93.3~) (Replaces: 3404154) |
|
Immediately | $ 122.99 | ||||
| 18 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 6.80 | |||||
| 19 | 8066086 | Drum, Hole Plug |
|
$ 10.16 | |||||
| 20 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.25 | |||||
| 22 | WP279843 | Heater Element (Replaces: 3403586) |
|
Immediately | $ 220.14 | ||||
| 23 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.13 | ||||
| 24 | 3936144 | Connector (3-circuit) |
|
$ 19.10 | |||||
| 25 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 26 | 345325 | Gusset (2) |
|
- | |||||
| 27 | WP3359452 | Nut, 3/8-16 (Replaces: 3359452) |
|
Immediately | $ 6.80 | ||||
| 28 | 3391834 | Drum Assembly (Replaces: 695943) |
|
$ 335.26 | |||||
| 29 | 279735 | Seal, Rear (Replaces: 345648) |
|
Immediately | $ 98.79 | ||||
| 30 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: 97787) |
|
Immediately | $ 7.92 | ||||
| 31 | 00685207 | Baffle, Drum (3) (Replaces: 685207) |
|
$ 293.40 | |||||
| 32 | WP3394508 | Ring, Bearing (Replaces: 3394508) |
|
$ 118.67 | |||||
| 33 | 3395683 | Housing Connector |
|
Immediately | $ 49.01 | ||||
| 34 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.71 | ||||
| 35 | 349241T | Roller, Support (Replaces: 3397588) |
|
Immediately | $ 26.58 | ||||
| 36 | WPW10359270 | Shaft, L.h. (Replaces: 3399506) |
|
Immediately | $ 65.44 | ||||
| 37 | WPW10359269 | Shaft, R.h. (Replaces: 3399507) |
|
Immediately | $ 51.09 | ||||
| 38 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 39 | 279872 | Resistor Assembly (Replaces: 3401077) |
|
$ 70.82 | |||||
| 41 | W10828351 | Lint Screen (Replaces: 8531964) |
|
Immediately | $ 62.64 | ||||
| 43 | W10828351 | Cover, Lint Screen (Replaces: 8531967) |
|
Immediately | $ 62.64 | ||||
| 44 | WP3390631 | Screw, 10-16 X 1/4 (Replaces: 342202) |
|
$ 7.43 | |||||
| 46 | 8066094 | Seal |
|
$ 8.38 | |||||
| 48 | 8299821 | Harness, Wiring |
|
- | |||||
| 50 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.07 | |||||
| 55 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 21.06 |
