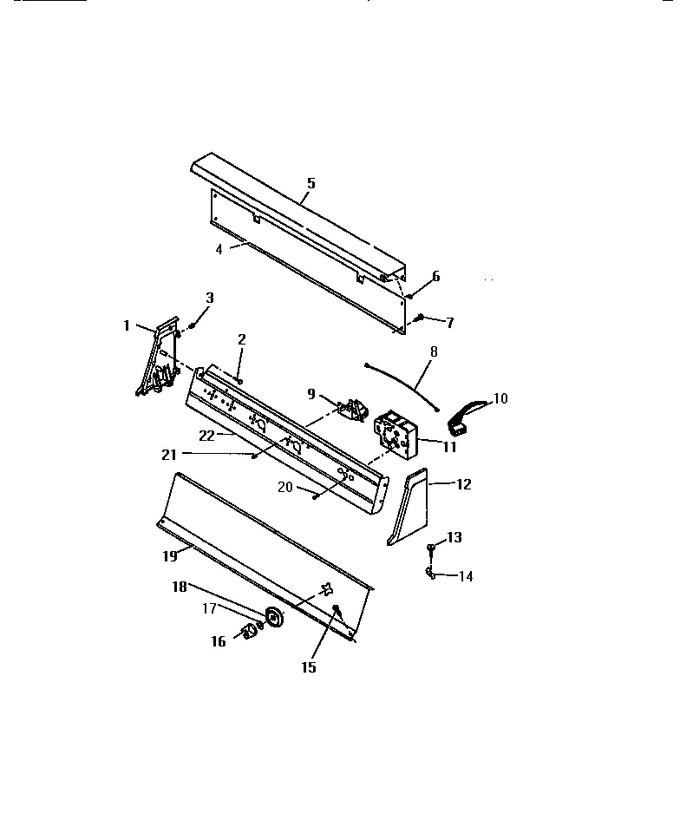

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8010831		End, Lh		Appelez-nous	-
2	8006546		Screws (4)		Appelez-nous	-
3	8010830		Clips (4)		Appelez-nous	-
4	8010824		Panel, Back		Appelez-nous	-
5	8011279		Trim		Appelez-nous	-
6	8010825		Clips (3)		Appelez-nous	-
7	8001559		Screws (5)		Appelez-nous	-
8	8015516		Harness, Ground		Appelez-nous	-
9	8015492		Switch, Water Level		Appelez-nous	-
10	8015510		Harness, Wiring		Appelez-nous	-
11	3015652		Timer		Appelez-nous	-
12	8010827		End, Rh		Appelez-nous	-
13	8001689		Screw		Appelez-nous	-
14	8002341		Terminal		Appelez-nous	-
15	8011318		Screws (2)		Appelez-nous	-
16	8015530		Knob, Timer		Appelez-nous	-
17	8015493		Spacer, Timer		Appelez-nous	-
18	8015529		Indicator, Timer		Appelez-nous	-
19	8015887		Escutcheon		Appelez-nous	-
20	8006636		Screws (2)		Appelez-nous	-
21	8010804		Screws (2)		Appelez-nous	-
22	8015503		Mounting Bracket, Control		Appelez-nous	-
*93800	8016754		Wire, Ground		Appelez-nous	-
