01 - Bulkhead Parts
02 - Cabinet Parts

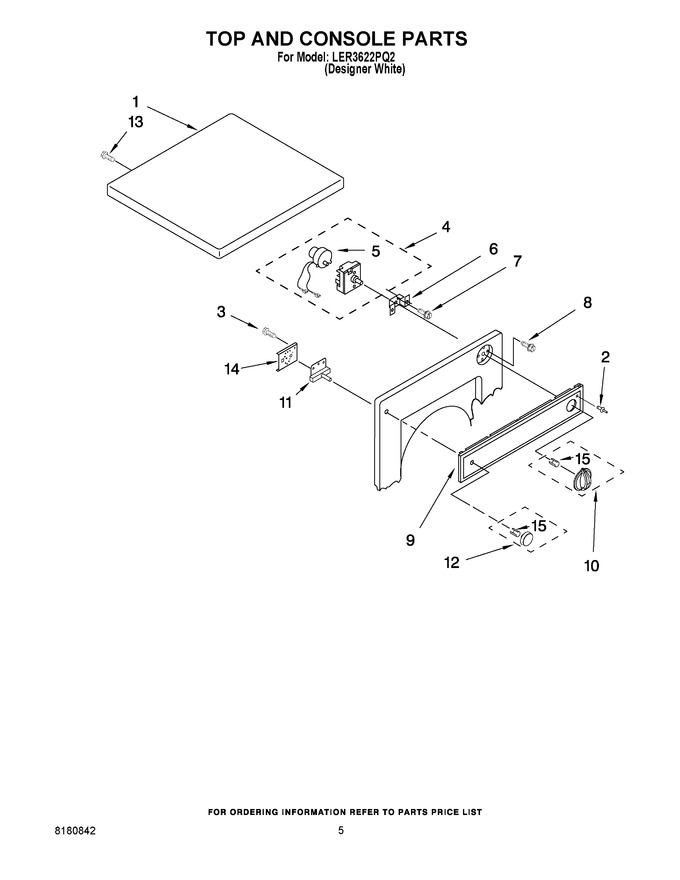

03 - Top And Console Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 345703 | Top |
|
$ 235.42 | |||||
| 2 | 307563 | Rivet, Pop |
|
- | |||||
| 3 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 7.43 | |||||
| 4 | WP8563882 | Timer, 60 Hz. (Replaces: 8563882) |
|
$ 344.09 | |||||
| 5 | N/P | Timer Motor (not Serviceable) |
|
- | |||||
| 6 | 348171 | Bracket, Timer |
|
- | |||||
| 7 | WP486579 | Screw, 8-32 X 7/32 (Replaces: 311865) |
|
$ 7.10 | |||||
| 8 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 7.23 | |||||
| 9 | 8562102 | Panel, Control |
|
- | |||||
| 10 | 8544955 | Timer Knob Assembly |
|
$ 41.86 | |||||
| 11 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 23.99 | ||||
| 12 | WP8544939 | Knob, Push-to-start (Replaces: 8544939) |
|
$ 47.20 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 14 | 3406860 | Bracket, Front Panel |
|
- | |||||
| 15 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 |
