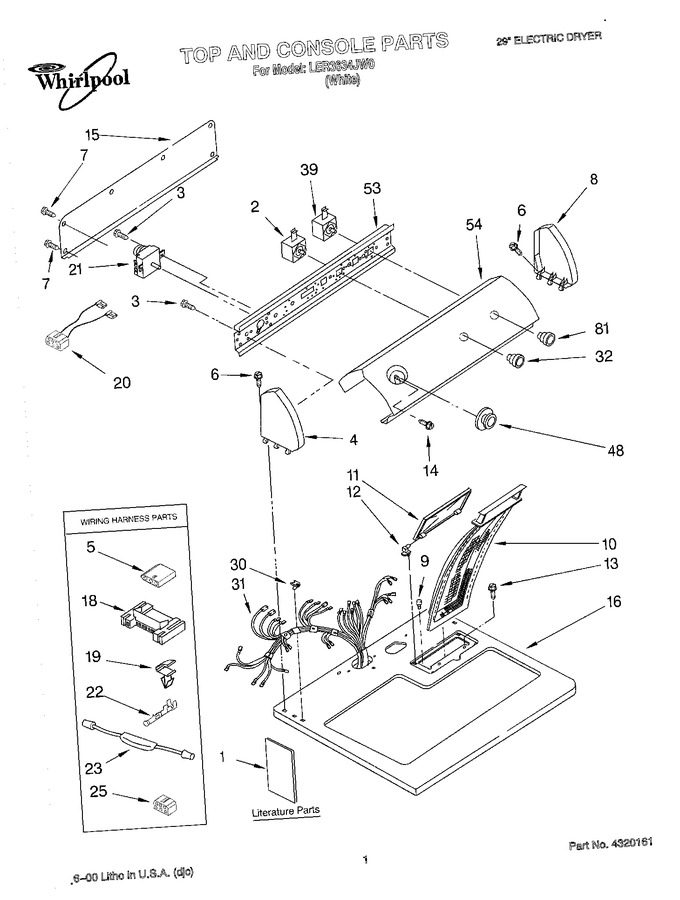

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8314844		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT3406688		Literature Parts (label, Wiring Diagram)		Appelez-nous	-
1	LIT3397618		Literature Parts (instructions, Installation)		Appelez-nous	-
2	3399638		Switch, Temperature				$ 122.62
3	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.23
4	8271367		Cap, End (l.h.)		Appelez-nous	-
5	3936144		Connector				$ 19.10
6	WP388326		Screw, Console   (Replaces: 388326)				$ 8.36
7	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.80
8	8271361		Cap, End (r.h.)		Appelez-nous	-
9	297535		Bumper, Lint Lid		Appelez-nous	-
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 37.72
11	8283378		Cover, Lint Screen				$ 44.80
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.30
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.30
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
14	3400859		Screw, Grounding				$ 12.49
15	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 121.78
16	8271390		Top		Appelez-nous	-
18	3395683		Connector (motor)			Immediately	$ 49.01
19	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.36
20	8283286		Wire-jumper Assembly		Appelez-nous	-
21	WP3976575		Timer, 60 Hz.   (Replaces: 3976575)			Immediately	$ 340.85
22	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.25
23	279872		Resistor Assembly   (Replaces: 3401076)				$ 70.82
25	3347243		Connector 6-circuit		Appelez-nous	-
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 6.98
31	3394290		Harness, Wiring		Appelez-nous	-
32	WP8538957		Knob, Control   (Replaces: 8271338)				$ 52.68
39	WP3395382		Switch, Push-to-start   (Replaces: 3395382)			Immediately	$ 45.14
48	8312690		Timer Knob Assembly		Appelez-nous	-
53	8271418		Bracket, Control				$ 57.15
54	3977814		Panel, Control		Appelez-nous	-
81	978883		Almond (uncut)		Appelez-nous	-
81	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
81	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
81	350956		Paint, Spray 13 Oz. (almond)				$ 48.61
81	8271343		Knob, Push-to-start		Appelez-nous	-
81	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
81	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
81	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	LIT677818		Dryer		Appelez-nous	-
